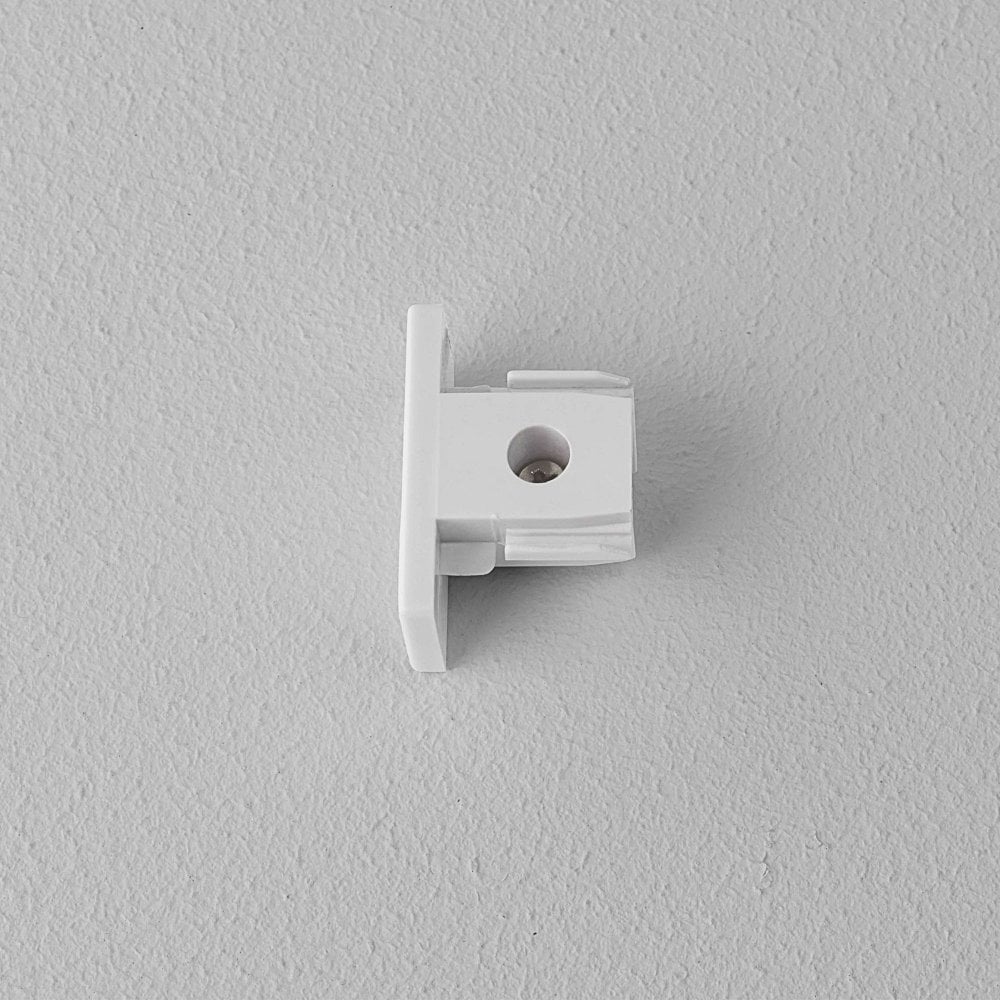

Astro Lighting Track End Cap White for Single Phase Track System

The Astro Lighting Track 1m White is a premium single phase ceiling track designed to create a flexible and fully customisable track lighting system for residential and commercial interiors. Finished in a contemporary matt white, this 1 metre metal track provides the foundation for Astro track spotlights, allowing luminaires to be positioned, repositioned and adjusted without rewiring. Ideal for kitchens, living rooms, retail spaces, galleries, offices and hospitality environments, it offers a clean architectural appearance with outstanding versatility.

Compatible with the complete Astro Track Lighting Collection, this Class I ceiling track uses a simple twist and lock mechanism that allows compatible track spotlights to be installed, repositioned or removed with ease. The track can also be cut to the required length during installation, making it suitable for bespoke lighting layouts. Manufactured from high-quality metal and backed by Astro Lighting's 3 Year Warranty, this professional lighting system provides an elegant, practical solution for modern lighting schemes.

Class I Single Phase System
The Astro Track Lighting System is a Class I installation requiring earth continuity throughout the complete track circuit. The integrated earth groove assists with correct installation and helps ensure safe, reliable operation.

Single Phase Operation
All compatible Astro track spotlights connected to the track operate together on a single lighting circuit. All luminaires are switched on, off and dimmed simultaneously.

Cut to Size Installation
The 1 metre track can be cut to the required length using a suitable metal cutting blade. Cuts should always be made perpendicular to ensure full compatibility with Astro track connectors and accessories.

High Load Capacity
Each track circuit supports a maximum connected load of 3120W at 240V (UK) or 2860W at 220V (EU). Larger installations can be extended using central live connectors or additional track circuits.

Flexible System Design
Compatible with Astro track spotlights, connectors and accessories, allowing bespoke lighting layouts for residential and commercial projects.

Ceiling Mounted Installation
Designed exclusively for ceiling installation to deliver optimum lighting performance, flexibility and safety.

Features of the Astro Lighting Track 1m White:

• Brand: Astro Lighting
• Collection: Track
• Product code: 6020001
• Type: Single phase ceiling track
• Finish: Matt White
• Material: Metal
• Length: 1000mm
• Height: 18mm
• Depth: 36mm
• Weight: 0.53kg
• Installation: Ceiling mounted
• Electrical Class: Class I
• Track system: Single Phase
• Compatible with Astro Track spotlights and accessories
• Twist and lock spotlight fixing system
• Track can be cut to custom lengths during installation
• Maximum circuit load: 3120W @ 240V (UK)
• Maximum circuit load: 2860W @ 220V (EU)
• Light source: Integrated LED
• Wattage: 8.2W LED
• This product does not include a light source
• Not suitable for use as a standalone luminaire
• Suitable for residential and commercial interiors
• Ideal for kitchens, living rooms, offices, galleries, retail stores and hospitality environments
• Indoor use only
• Energy class: Not applicable
• Switching: Not applicable
• Warranty: 3 Years

View all Astro Lighting

View all Track System

The Astro Lighting Track 2m White is a premium single phase ceiling track designed to create flexible, professional lighting layouts in residential and commercial interiors. Finished in a contemporary matt white, this 2 metre track forms the foundation of the Astro Track Lighting System, allowing compatible track spotlights to be positioned, adjusted and relocated with ease. Ideal for kitchens, open plan living spaces, retail environments, galleries, offices and hospitality projects, it provides a clean architectural appearance while delivering complete lighting flexibility.

Manufactured from high-quality metal, the Astro Track System uses a simple twist and lock mechanism that enables compatible track spotlights to be installed or repositioned without rewiring. This 240V ceiling track is compatible with Astro connectors, live ends and end caps, allowing bespoke track layouts to be created for almost any application. As part of Astro's modular lighting system, the track provides a professional lighting solution for designers, architects and homeowners seeking adaptable, contemporary illumination. Please note this product is supplied as the track only, compatible spotlights and accessories are sold separately.

Class I Single Phase System
The Astro Track System is a Class I installation requiring earth continuity throughout the complete circuit. All compatible track components are designed to maintain safe electrical continuity.

Single Phase Operation
All compatible track spotlights connected to the circuit operate together from one switch and dim together when used with compatible dimmable luminaires.

Fully Modular System
Compatible with Astro corner connectors, end-to-end connectors, live end connectors and end caps, allowing highly flexible track lighting layouts.

Twist and Lock Spotlight Installation
Astro track spotlights can be quickly installed, repositioned or removed without rewiring, making future lighting changes simple and convenient.

Professional Ceiling Installation
Designed exclusively for ceiling mounting in residential and commercial applications.

Features of the Astro Lighting Track 2m White:

• Brand: Astro Lighting
• Collection: Astro Track System
• Product code: 6020002
• Type: Single phase ceiling track
• Finish: Matt White
• Material: Metal
• Length: 2000mm
• Height: 18mm
• Projection (Depth): 36mm
• Electrical supply: 240V Mains
• Track system: Single Phase
• Electrical Class: Class I
• IP Rating: IP20
• Dimmable: Yes, when used with compatible dimmable Astro track spotlights and lamps
• Compatible with Astro Track connectors, live ends and end caps
• Compatible spotlight ranges include Can 50 Track, Can 75 Track and Ascoli Track spotlights
• Supplied as track only
• Track spotlights and accessories sold separately
• Ceiling mounted installation
• Suitable for commercial and residential interiors
• Ideal for kitchens, living rooms, offices, retail stores, galleries, restaurants and hospitality spaces
• Fire Rating: Not Fire Rated
• Zone Rating: Zone 3
• Light output: Dependent upon selected track spotlights
• Indoor use only
• Warranty: 3 Years

View all Astro Lighting

View all Track System

The Astro Lighting Track End-to-End Connector White is an essential accessory for extending and customising the Astro Single Phase Track Lighting System. Finished in a clean matt white, this connector joins two track sections together seamlessly, creating a continuous run of architectural lighting while maintaining both the electrical connection and the sleek appearance of the installation. It is ideal for creating longer track layouts in residential and commercial environments.

Designed specifically for use with the Astro Track System, this Class I connector provides a secure connection between compatible track sections, ensuring earth continuity throughout the lighting circuit. Manufactured to Astro Lighting's exacting standards, the connector offers a reliable, professional solution for bespoke track lighting installations. Whether designing lighting for kitchens, open plan living areas, retail spaces, galleries, offices or hospitality projects, this connector allows greater flexibility when creating customised lighting layouts.

Features of the Astro Lighting Track End-to-End Connector White:

• Brand: Astro Lighting
• Collection: Astro Track System
• Product code: 6020004
• Type: Track end-to-end connector
• Designed for Astro Single Phase Track Lighting System
• Finish: Matt White
• Material: High quality moulded construction
• Height: 18mm
• Width: 64mm
• Depth: 35.5mm
• Electrical supply: 240V Mains compatible
• Track compatibility: 1-Circuit Astro Track System
• Electrical Class: Class I
• Maintains earth continuity throughout the track circuit
• Connects two Astro track sections in a straight line
• Creates longer continuous lighting runs
• Quick and simple installation
• Seamlessly matches Astro Matt White track sections
• Compatible with Astro Track spotlights, connectors and accessories
• Ideal for kitchens, living rooms, offices, retail stores, galleries and hospitality interiors
• Suitable for residential and commercial lighting installations
• IP Rating: IP20
• Fire Rating: Not Fire Rated
• Zone Rating: Zone 3
• Accessory only, no light source
• Indoor use only
• Warranty: 3 Years

View all Astro Lighting

View all Track System

The Astro Lighting Track Live End White is an essential power feed accessory for the Astro Single Phase Track Lighting System. Finished in a contemporary matt white, this live end connector provides the electrical supply to the track, enabling compatible Astro track spotlights to operate safely and efficiently. Designed to integrate seamlessly with the Astro Track System, it delivers a clean, professional finish while maintaining the minimalist aesthetic of modern architectural lighting installations.

Manufactured to Astro Lighting's exacting quality standards, this Class I live end connector is designed specifically for use with Astro 1-circuit track systems. It ensures reliable mains power delivery throughout the lighting circuit and is ideal for bespoke track lighting installations in residential and commercial environments. Whether illuminating kitchens, open plan living spaces, offices, galleries, retail stores or hospitality projects, this live end connector forms an essential component of a flexible and fully customisable lighting solution.

Features of the Astro Lighting Track Live End White:

• Brand: Astro Lighting
• Collection: Astro Track System
• Product code: 6020005
• Type: Track live end connector
• Designed for Astro Single Phase Track Lighting System
• Provides mains power connection to the track system
• Finish: Matt White
• Material: High quality moulded construction
• Height: 18mm
• Width: 104mm
• Depth: 35.5mm
• Electrical supply: 240V Mains
• Track compatibility: 1-Circuit Astro Track System
• Electrical Class: Class I
• Maintains earth continuity throughout the track circuit
• Single phase operation, all connected luminaires operate together on one circuit
• Quick and straightforward installation
• Compatible with Astro Track spotlights, connectors and accessories
• Seamlessly matches Astro Matt White track sections
• Suitable for residential and commercial lighting installations
• Ideal for kitchens, living rooms, offices, galleries, retail stores and hospitality interiors
• IP Rating: IP20
• Fire Rating: Not Fire Rated
• Zone Rating: Zone 3
• Accessory only, no light source
• Indoor use only
• Warranty: 3 Years

View all Astro Lighting

View all Track System

The Astro Lighting Central Live Connector Matt White is an essential power feed accessory for the Astro Single Phase Track Lighting System. Designed to introduce power at a central point within a track layout, this premium connector allows longer lighting runs and more complex configurations while maintaining a clean, minimalist appearance. Finished in a contemporary matt white, it integrates seamlessly with the Astro Track System, making it ideal for architectural lighting installations in both residential and commercial environments.

Manufactured to Astro Lighting's renowned quality standards, this Class I central live connector provides a secure mains power connection to compatible 1-circuit track systems while maintaining earth continuity throughout the installation. It is particularly useful for extending larger track lighting schemes where additional power feeds are required to remain within the maximum circuit load. Suitable for kitchens, open plan living spaces, retail stores, galleries, offices and hospitality venues, this accessory provides the flexibility needed for professional lighting designs.

Features of the Astro Lighting Central Live Connector Matt White:

• Brand: Astro Lighting
• Collection: Astro Track System
• Product code: 6020017
• Type: Central live connector
• Designed for the Astro Single Phase Track Lighting System
• Provides a central mains power connection within a track layout
• Ideal for extending larger track lighting installations
• Finish: Matt White
• Material: High quality moulded construction
• Height: 18mm
• Width: 172mm
• Depth: 35mm
• Electrical supply: 240V Mains
• Track compatibility: 1-Circuit Astro Track System
• Electrical Class: Class I
• Maintains earth continuity throughout the track circuit
• Suitable for larger lighting layouts requiring an additional power feed
• Compatible with Astro Track sections, spotlights, connectors and accessories
• Quick and straightforward installation
• Seamlessly matches Astro Matt White track sections
• Suitable for residential and commercial lighting installations
• Ideal for kitchens, living rooms, offices, galleries, retail stores and hospitality interiors
• IP Rating: IP20
• Fire Rating: Not Fire Rated
• Zone Rating: Zone 3
• Accessory only, no light source
• Indoor use only
• Warranty: 3 Years
