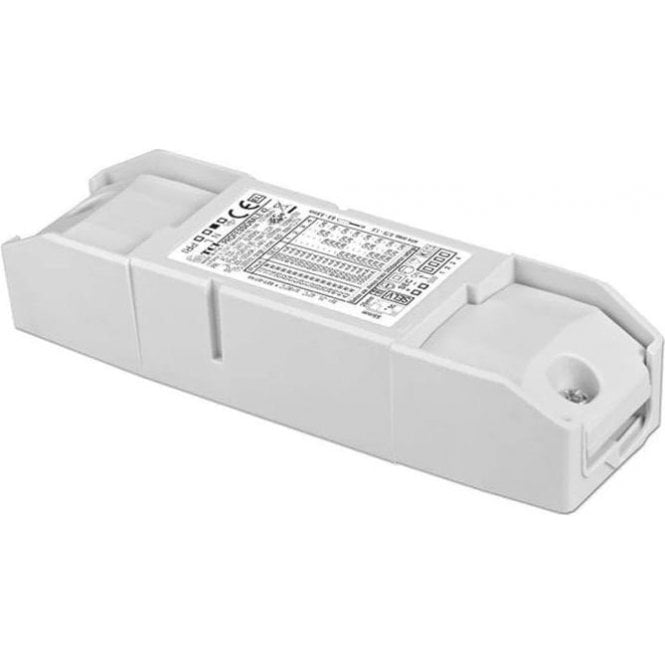

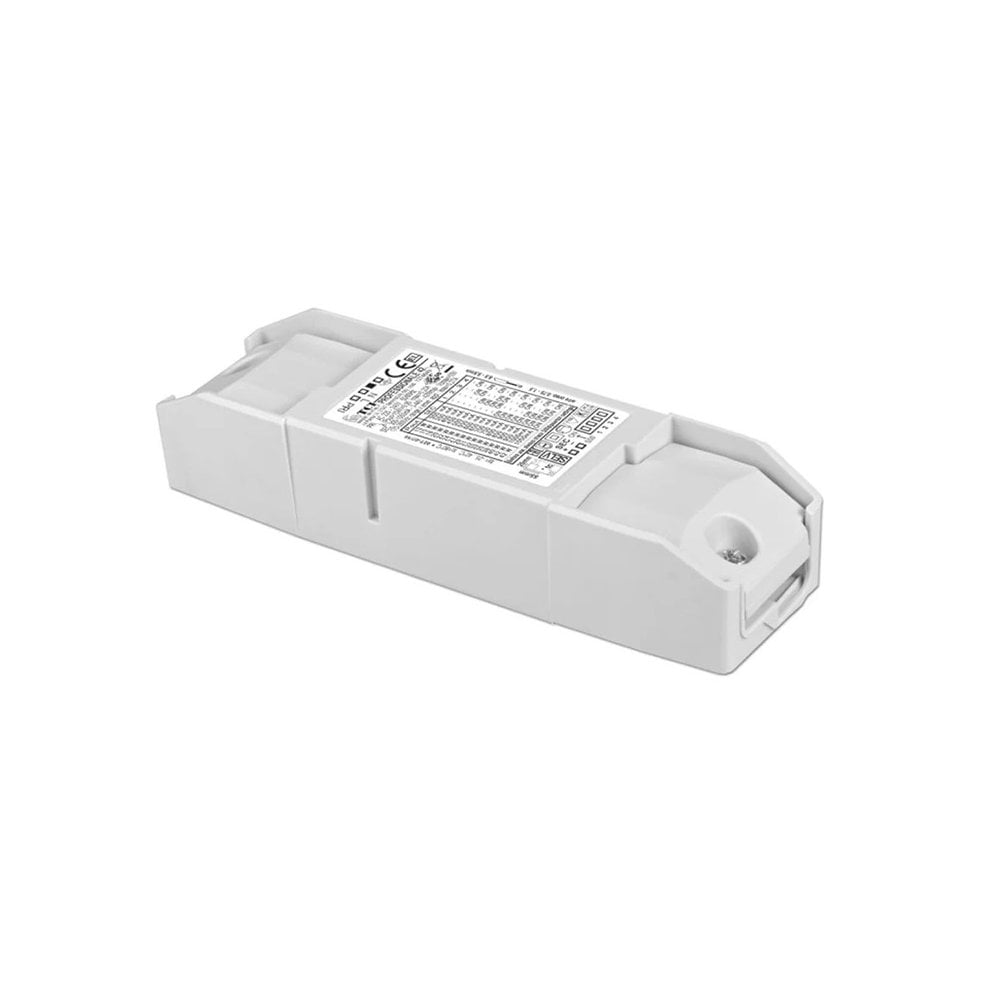

Astro Lighting Astro LED Driver

The Astro 6008072 LED driver CC350Ma15W/CC / 700Ma 31W non-dim is for use with Astro products and LED's up to 15W-31W in total. It is non-dimmable and requires a constant current. Wire in series only. Only recommended use with other Astro products

Features of the Astro 6008072 Led Driver:

• Type: Constant Current
• Driver Current: 350700mA
• Driver Voltage: N/A
• Dimmable: No
• Class: Ce (Class II)
• Supply Voltage: 220v
• Supply Frequency: 50/60Hz
• Power Factor: 0.95
• Min. Output Voltage: 3V DC
• Max. Output Voltage: 44V DC
• Min. Output Power: 1/1W
• Max. Output Power: 15/31W
• Inrush Current: 5A
• IP Rating: IP20
• Working temp: -25°C - +40°C
• Connection Type: Screw Terminals
• Height: 30mm
• Width: 43.5mm
• Length: 146.5mm
• Min. Circular Aperture: 54mm
• Max. Led Distance <2M
• Manufacturer: TCI
• Model Number: Professional 42
