Astro Lighting Astro LED Driver

Code: 6008089

€23.47
|
|

Loading...

|

Spot Products:

Add Astro LED Driver Non Dimmable 350mA 10 Watt ( €15.77 )

0

Last One in Stock

No Product Selected

(More Info)
Astro LED Driver Non Dimmable 350mA 10 Watt

Product Summary

Type: Constant Current

Driver Current: 350mA

Driver Voltage: N/A

Dimmable: No

Class: Ce (Class II)

Supply Voltage: 220v

Supply Frequency: 50/60Hz

Power Factor: 0.9

Min. Output Voltage: 2.7V DC

Max. Output Voltage: 9.5V DC

Min. Output Power: -

Max. Output Power: 3.3

Inrush Current: 15 A

IP Rating: IP20

Working temp: -20°C - +50°C

Connection Type: Trailing Wires

Height: 20mm

Width: 27.2mm

Length: 49mm

Min. Circular Aperture: 35/13/8mm

Max. Led Distance <2M

Manufacturer: HEP

Model Number: LSC4W350LRP UNI

Product Description

Astro 6008090 LED Driver CC 350mA 1-3.3W driver is for use with Astro products and LED's up to 10.15W. It is non-dimmable and requires a constant current. Wire in series only. Max wire length 2m.

Features of the Astro 6008090 Led Driver:

Type: Constant Current

Driver Current: 350mA

Driver Voltage: N/A

Dimmable: No

Class: Ce (Class II)

Supply Voltage: 220v

Supply Frequency: 50/60Hz

Power Factor: 0.9

Min. Output Voltage: 2.7V DC

Max. Output Voltage: 9.5V DC

Min. Output Power: -

Max. Output Power: 3.3

Inrush Current: 15 A

IP Rating: IP20

Working temp: -20°C - +50°C

Connection Type: Trailing Wires

Height: 20mm

Width: 27.2mm

Length: 49mm

Min. Circular Aperture: 35/13/8mm

Max. Led Distance <2M

Manufacturer: HEP

Model Number: LSC4W350LRP UNI

View all Astro Lighting

View all LED Drivers
?

Product Details
Payment & Security

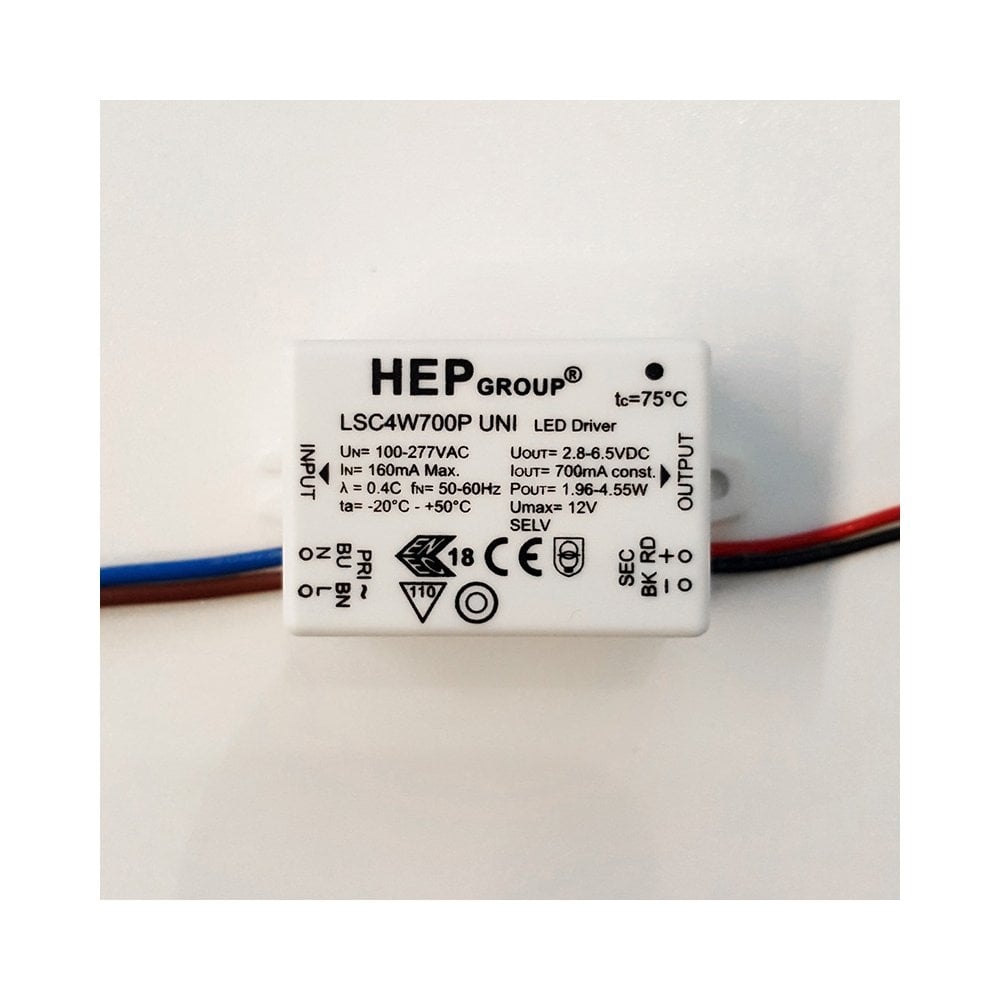

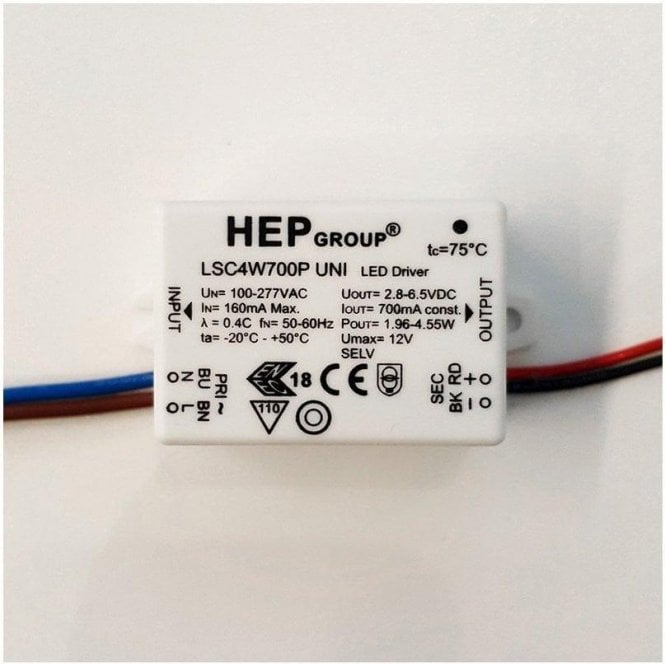

The Astro 6008089 700mA LED driver is for use with Astro products and LED's up to 3W in total. It is non dimmable and requires a constant current. Wire in series only. Only recommended use with other Astro products

Features of the Astro 6008089 Led Driver:

Type: Constant Current
Driver Current: 700mA
Driver Voltage: N/A
Dimmable: No
Class: Ce (Class II)
Supply Voltage: 220v
Supply Frequency: 50/60Hz
Power Factor: 0.45
Min. Output Voltage: 2.8V DC
Max. Output Voltage: 6.5V DC
Min. Output Power: 1.96W
Max. Output Power: 4.55W
Inrush Current: 9A
IP Rating: IP20
Working temp: -20°C - +50°C
Connection Type: Screw Terminals
Height: 20mm
Width: 27.2mm
Length: 49mm
Min. Circular Aperture: 35mm
Max. Led Distance <2M
Manufacturer: HEP
Model Number: LSC4W700P UNI

View all Astro Lighting

View all LED Drivers
