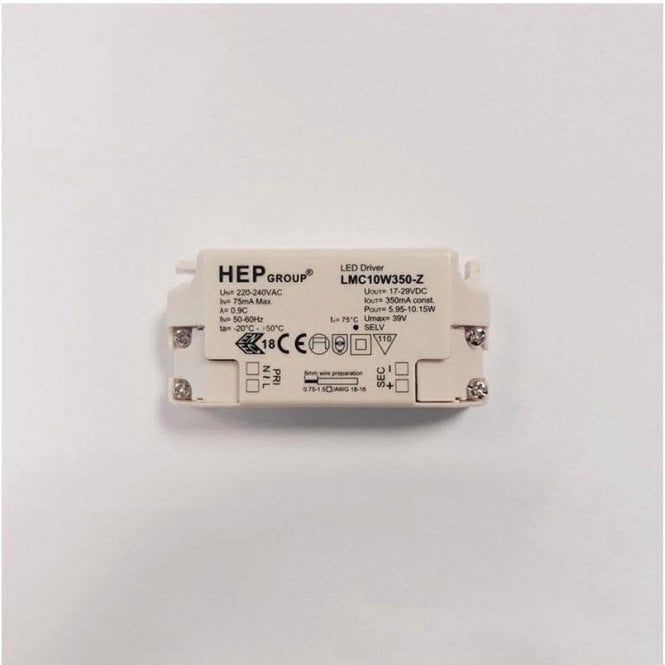

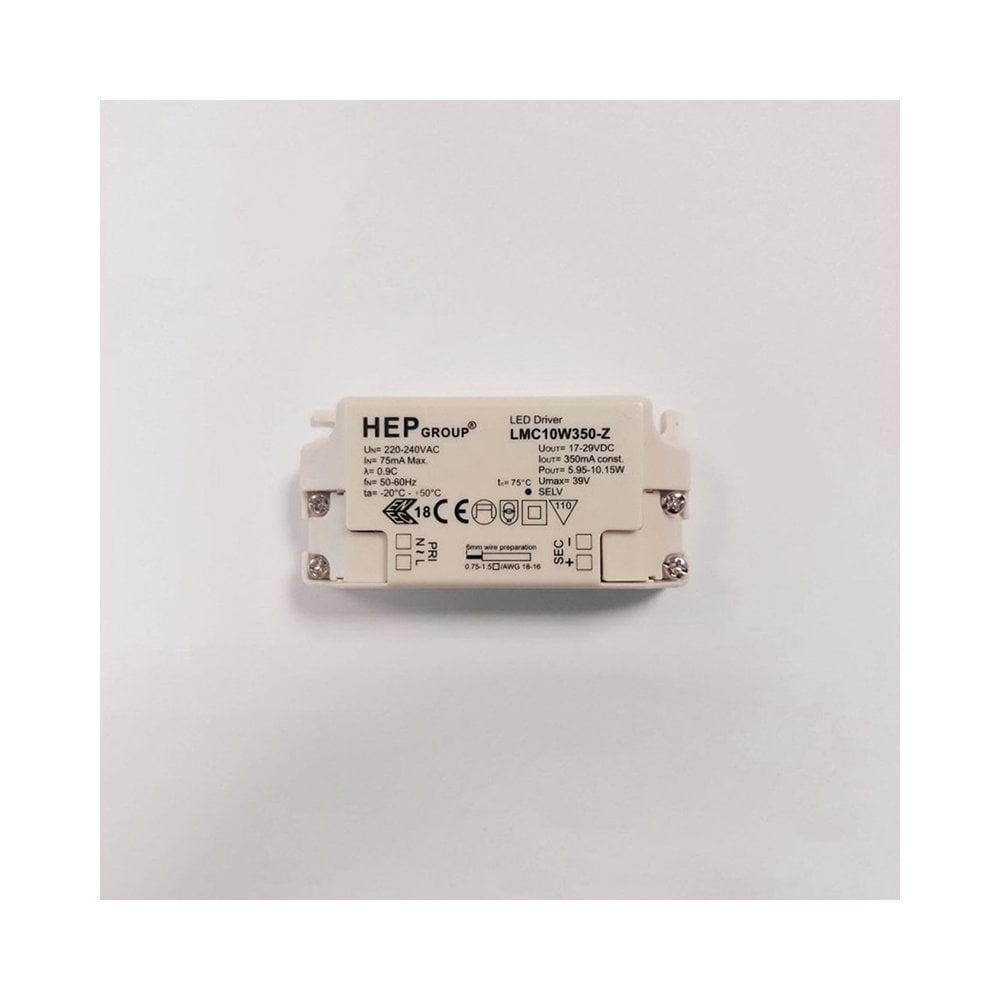

Astro Lighting Astro Led Driver CC 350mA 1-3.3W

Astro 6008090 LED Driver CC 350mA 1-3.3W driver is for use with Astro products and LED's up to 10.15W. It is non-dimmable and requires a constant current. Wire in series only. Max wire length 2m.

Features of the Astro 6008090 Led Driver:

• Type: Constant Current
• Driver Current: 350mA
• Driver Voltage: N/A
• Dimmable: No
• Class: Ce (Class II)
• Supply Voltage: 220v
• Supply Frequency: 50/60Hz
• Power Factor: 0.9
• Min. Output Voltage: 2.7V DC
• Max. Output Voltage: 9.5V DC
• Min. Output Power: -
• Max. Output Power: 3.3
• Inrush Current: 15 A
• IP Rating: IP20
• Working temp: -20°C - +50°C
• Connection Type: Trailing Wires
• Height: 20mm
• Width: 27.2mm
• Length: 49mm
• Min. Circular Aperture: 35/13/8mm
• Max. Led Distance <2M
• Manufacturer: HEP
• Model Number: LSC4W350LRP UNI
