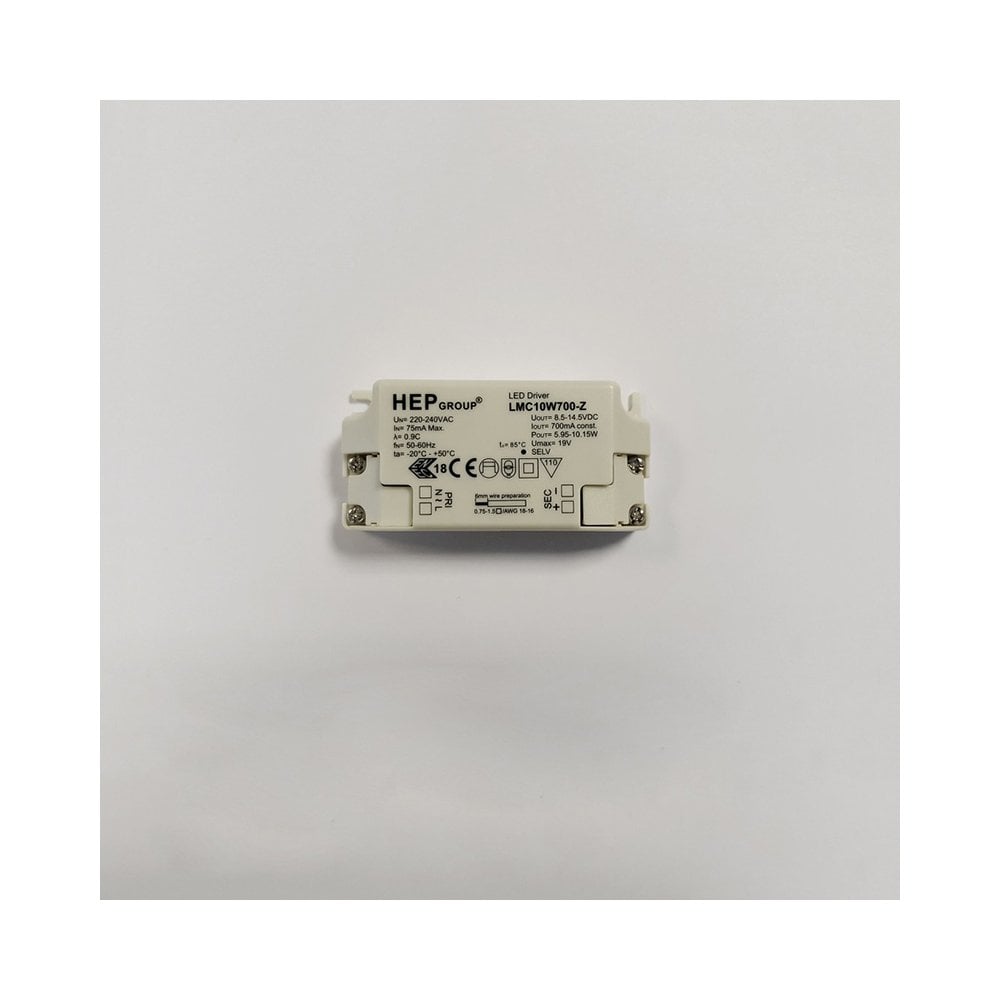

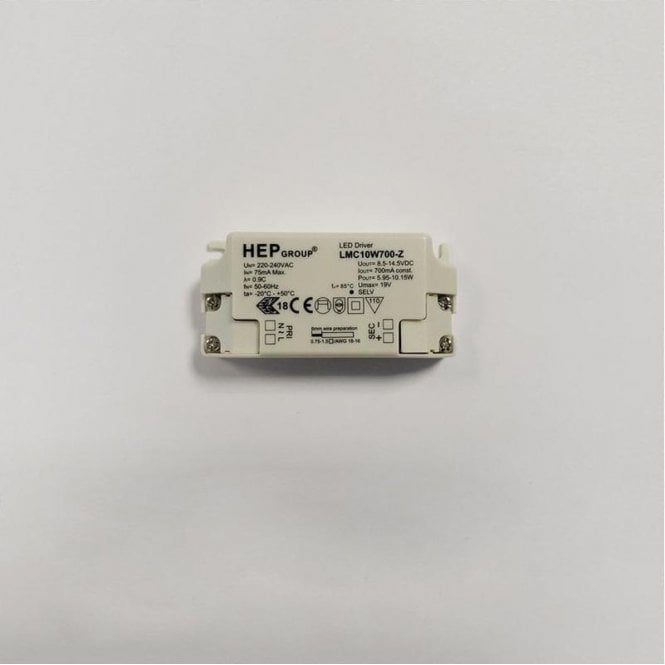

Astro Lighting Astro Led Driver 700mA 10.15W

Astro 6008022 LED Driver CC 700mA 6-10W driver is for use with Astro products and LED's up to 10.15W in total. It is non dimmable and requires a constant current. Wire in series only. Max wire length 2m.

Features of the Astro 6008022 Led Driver:

• Old part code: 1921
• Type: Constant Current
• Driver Current: 700mA
• Driver Voltage: N/A
• Dimmable: No
• Class: Ce (Class II)
• Supply Voltage: 220v
• Supply Frequency: 50/60Hz
• Power Factor: 0.9
• Min. Output Voltage: 8.5V DC
• Max. Output Voltage: 14.5V DC
• Min. Output Power: 5.95W
• Max. Output Power: 10.15W
• Inrush Current: 10.08A
• IP Rating: IP20
• Working temp: -40°C - +50°C
• Connection Type: Screw Terminals
• Height: 22mm
• Width: 40.4mm
• Length: 85mm
• Min. Circular Aperture: 46mm
• Max. Led Distance <2M
• Manufacturer: HEP
• Model Number: LMC10W700-Z
