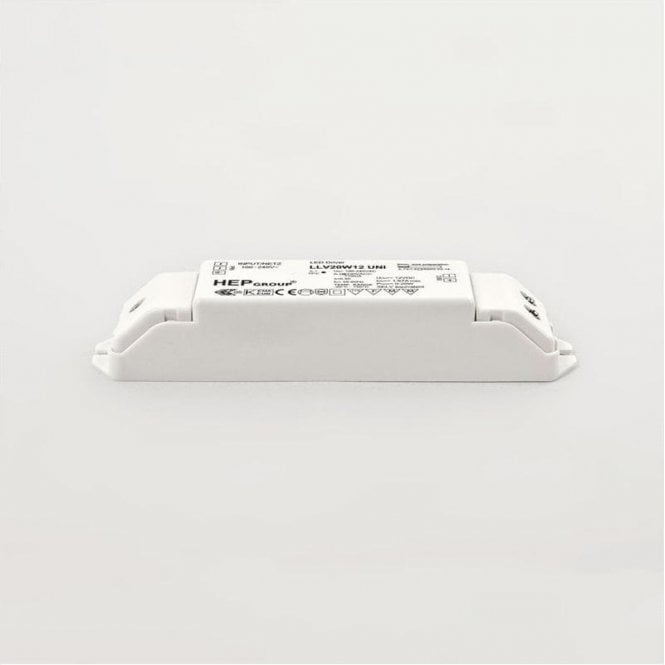

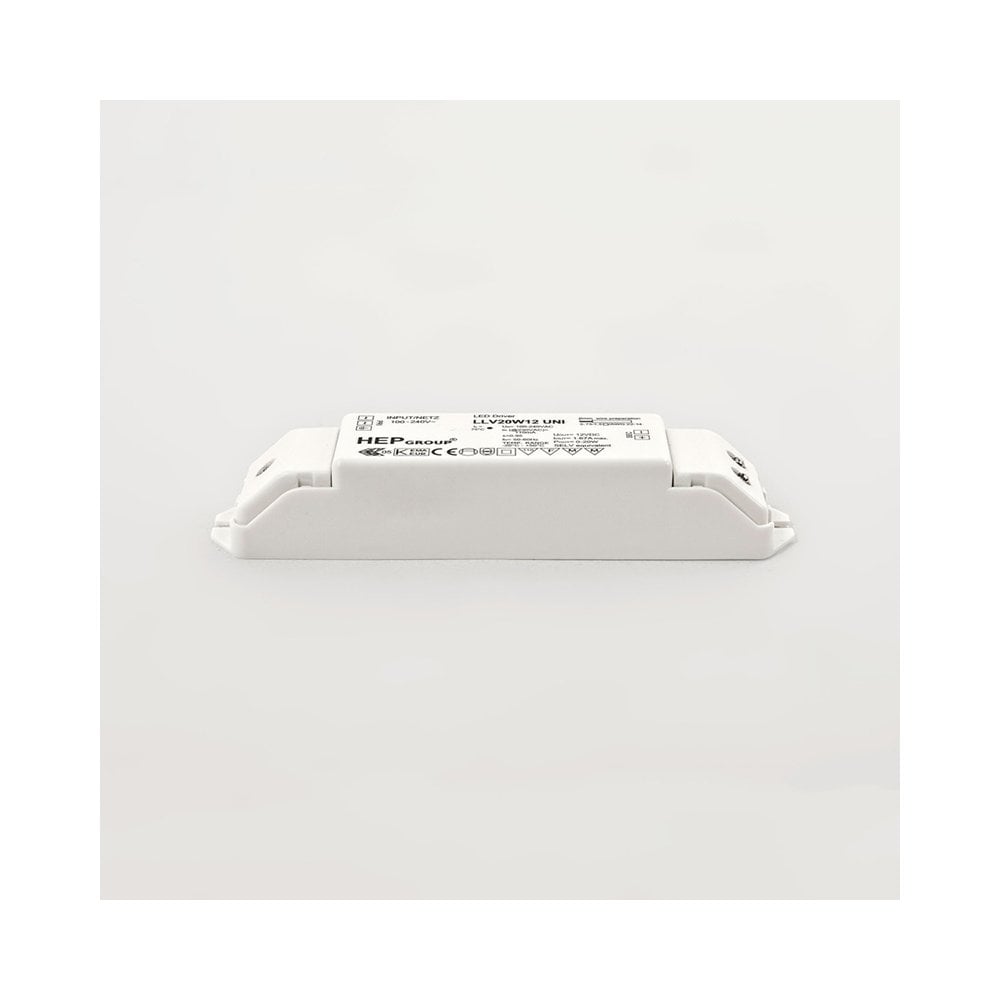

Astro Lighting Astro Dimmable Led Driver 350mA 11W

The Astro 6008013 350mA LED driver is for use with 11W LEDS and requires a constant current. Please note the driver must be used in conjunction with a 1-10 volt dimmer switch, this is not a standard dimming option contact us for more details. Wire in series only.

Features of the Astro 6008013 Dimmable Led Driver 350mA 11W:

• Old part code: 1756
• Type: Constant Current
• Driver Current: 350mA
• Driver Voltage: N/A
• Dimmable: 1-10V
• Class: Ce (Class II)
• Supply Voltage: 220-240v
• Supply Frequency: 50/60Hz
• Power Factor: 0.55
• Min. Output Voltage: 3.0V DC
• Max. Output Voltage: 30.0V DC
• Min. Output Power: 1.05W
• Max. Output Power: 11.0W
• Inrush Current: 58.0A
• IP Rating: IP20
• Working temp: -20°C - +50°C
• Connection Type: Screw Terminals
• Height: 38.80mm
• Width: 42.40mm
• Length: 200mm
• Min. Circular Aperture: 57mm
• Max. Led Distance N/A
• Manufacturer: HEP
• Model Number: LPVC11A1C
