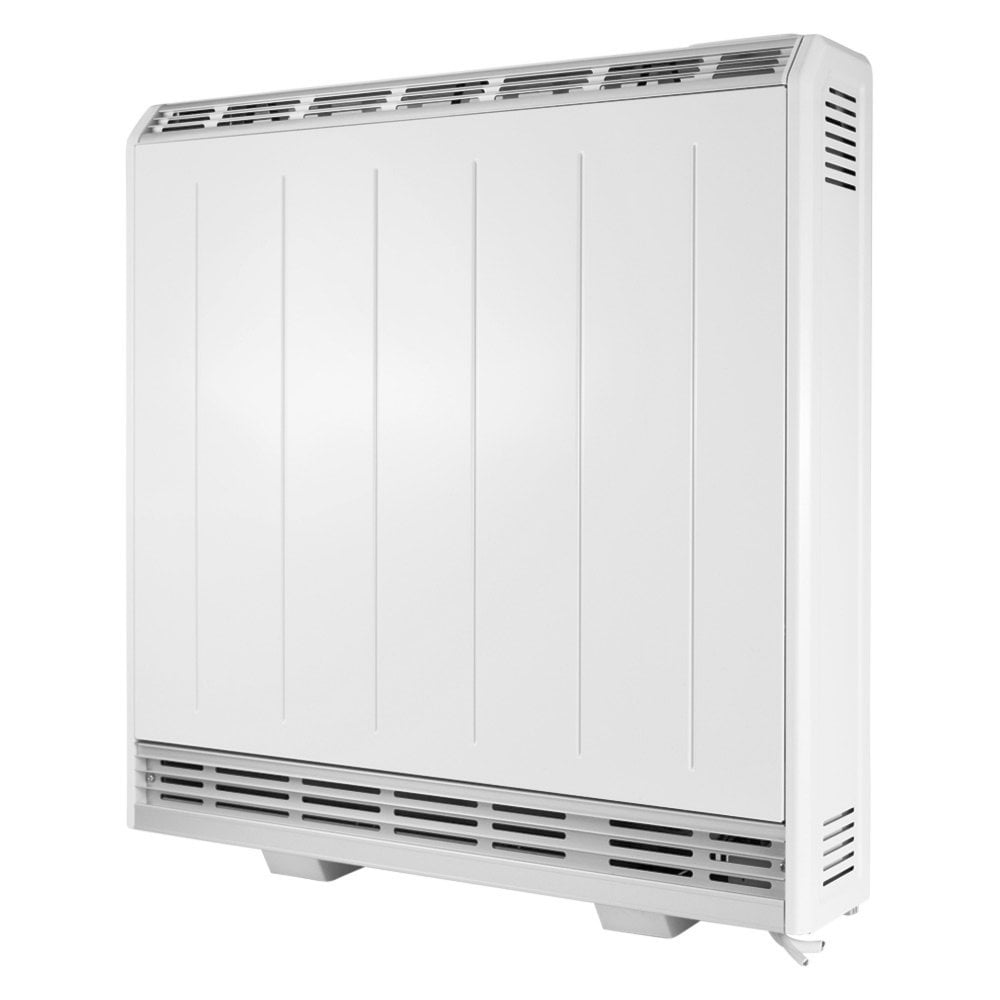

Dimplex XLE125 1.25kW Economy 7 Storage Heater

The Dimplex XLE125 electric storage heater, with an output of 1250W (1.25kW), is designed to replace traditional storage heaters while offering significantly improved energy efficiency. It features new EcoDesign-compliant controls as part of the European Lot 20 directive, ensuring lower energy consumption and better performance. Equipped with Adaptive Start and Open Window Sensing technology, the Dimplex XLE125 provides advanced intelligent control for optimal comfort and energy savings. With clean, modern styling and a choice of five power outputs ranging from 500W to 1500W, it is the perfect upgrade for efficient, reliable electric heating.

Installation and Power Supply:

The Dimplex XLE125 requires two electrical supplies, one off-peak and one on-peak, to operate effectively. To take advantage of low-cost off-peak energy, an Economy 7 meter is necessary. The peak supply should be connected via a switched fused spur with a fuse rating suitable for the appliance’s flex, while the off-peak supply is provided through a 20A double pole switch.

Smart Design and Easy Operation:

This model features a bright RGB backlit digital display with clear graphics and simple, tactile buttons with audio feedback. The control panel can be locked using a PIN code, making it ideal for landlords or preventing accidental changes by children. The built-in coin cell battery backup preserves your settings during power cuts, ensuring convenience and peace of mind.

Key Functions of Dimplex XLE Heaters:

• Dynamic Storage Capacity: The heater automatically adjusts its stored energy based on your heating requirements, self-regulating to match your lifestyle and avoiding unnecessary energy use.
• Open Window Detection: Advanced sensors detect when doors or windows are open and reduce heat output to prevent energy waste.
• Adaptive Start: Ensures the room reaches the desired temperature at the programmed time with precision efficiency. For example, if you set the heater to 21°C at 7am, it will pre-heat the room using the minimum energy necessary to reach that temperature exactly at 7am.
• Quiet Fan-Assisted Output: An internal fan distributes heat evenly and quietly, providing a quick warmth boost during colder periods.
• Excellent Heat Retention: The storage core is made from high-density bonded magnetite energy cells, delivering superior heat storage and release performance.
• Highly Efficient System: Designed to maximise the benefits of off-peak electricity, the XLE125 offers low running costs, reduced energy consumption, and minimal carbon emissions, making it efficient and environmentally friendly.

Features of the Dimplex XLE125 Include:

• 7-day programmable user timer
• Multiple heat modes including Timer, Eco, Manual, Setback, and Off
• Simple and intuitive user controls
• Boost switch for quick additional warmth when required
• Adjustable temperature range from 7°C to 32°C
• Replaceable 3.3V coin-cell battery (5-year lifespan)
• Secure wall fixings for safe installation
• Supplied with 40mm feet for improved weight distribution
• Safety features include electronic overheat protection and LVD and EMC compliance
• IPX4 rated, suitable for bathrooms and wet areas
• Finish: White (RAL 9016)
• Voltage: 230–240V 50Hz
• Height: 749mm
• Width: 947mm
• Depth: 182mm
• Weight: 133kg
• Guarantee: 2 years

Modern Replacement for Older Models:

The Dimplex XLS24N, CXLS24, and DUO500N storage heaters have now been discontinued and replaced by the Dimplex XLE125. With its intelligent control features, improved efficiency, and elegant design, the XLE125 represents the next generation of electric storage heating technology.
