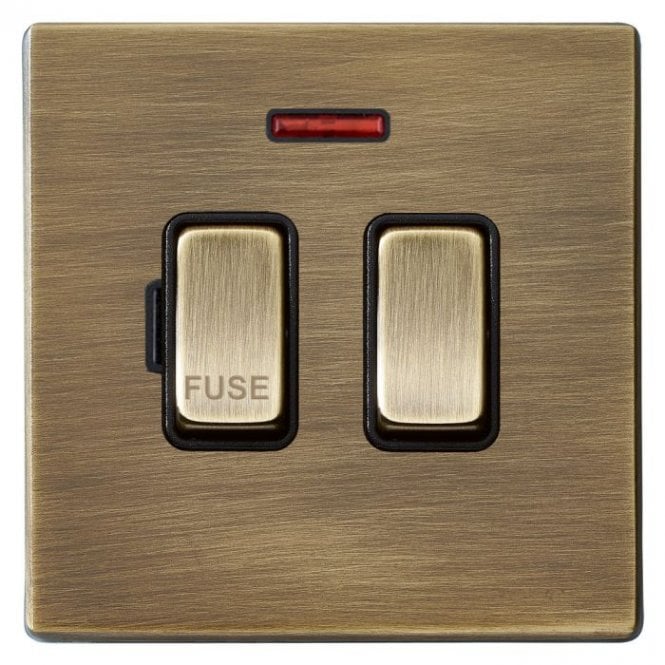

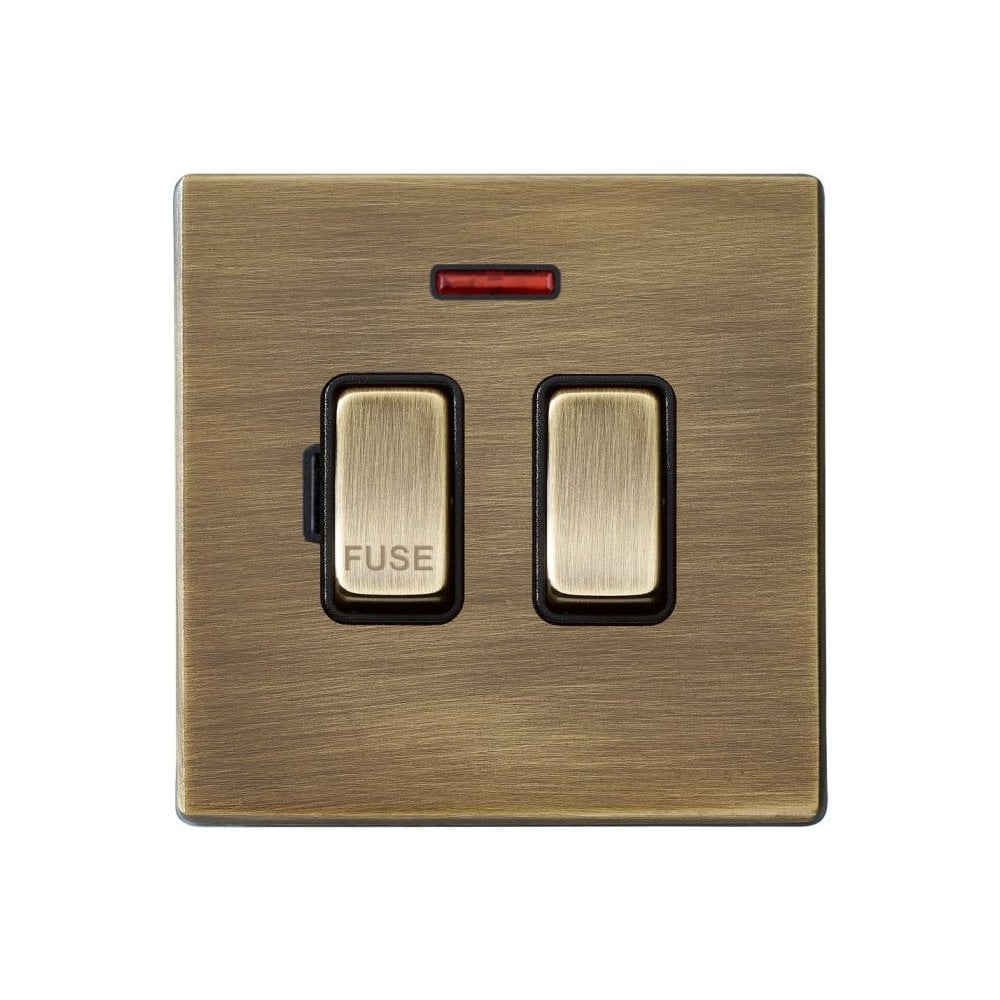

Hamilton Sockets & Switches Hamilton Switched Fused Spur Neon, Antique Brass

Code: 79SPNAB-B

Now €37.06
RRP: €46.33
|
|
Save: €9.27 Save 20%

Loading...

|

Product Details
Payment & Security
Downloads

The Hamilton Double Pole Fused Spur with Neon Switch in antique brass is a premium-quality fused connection unit, ideal for isolating higher voltage appliances such as panel heaters or hand dryers. Part of the British-made Hamilton sockets and switches range, this accessory features a built-in neon indicator for clear power status, a slim 5mm profile, and concealed fixings for a screwless, contemporary look. The antique brass finish with black insert offers timeless elegance, making it perfect for both modern and traditional interiors. Designed for durability, safety, and ease of installation, the Hartland fused spur with neon is available without extended lead times.

Features of the Hamilton Switched Fused Spur Neon, Antique Brass

Model Number: 7G29SPNAB-B
Product Type: Switched Spur
Fixing Type: Box Fix
Material: Metal
Finish: Antique Brass
Insert Type: 1 gang 13A Double Pole Fused Spur Neon
Insert Colour: Black
Commodity Code: 85369010
Luckins TSI: 407516595
Height: 88mm
Width: 88mm
Plate Depth: 5mm
Weight: 138g
Back Box Depth: Minimum 35mm
Switched Poles: Double
Current Rating: 13A
Voltage: 230V
Maximum Load: 13A
Mains Frequency: 50Hz
IP Rating: IP2XD
Contact Gap Minimum: 3mm
Terminal Capacity 1: 3x2.5mm²
Terminal Capacity 2: 2x4mm² Multi-strand
Terminal Capacity 3: 1x6mm²
Earth Terminal Capacity 1: 6x1mm²
Earth Terminal Capacity 2: 5x1.5mm²
Earth Terminal Capacity 3: 3x2.5mm²
Earth Terminal Capacity 4: 2x4mm² Multi-strand
Earth Terminal Capacity 5: 1x6mm²
Product Class 1: Must be earthed
Ambient Operating Temperature: -5° to +40°C
Recommended Location: Internal Use Only
Maximum Installation Altitude: 2000m
Standard/Approval: BS 1363-4
Warranty: 25 Years
