Hamilton Single 2 Way Leading Edge Push On/Off Resistive Dimmer, Antique Brass, 100W
Hamilton Sockets & Switches Hamilton Single 2 Way Leading Edge Push On/Off Resistive Dimmer, Antique Brass, 100W

Hamilton Sockets & Switches Hamilton Single 2 Way Leading Edge Push On/Off Resistive Dimmer, Antique Brass, 100W

Code: 791XLEDITB100
  • Now €45.70
  • RRP: €57.13
  • Save: €11.43 Save 20%
Loading...
  |

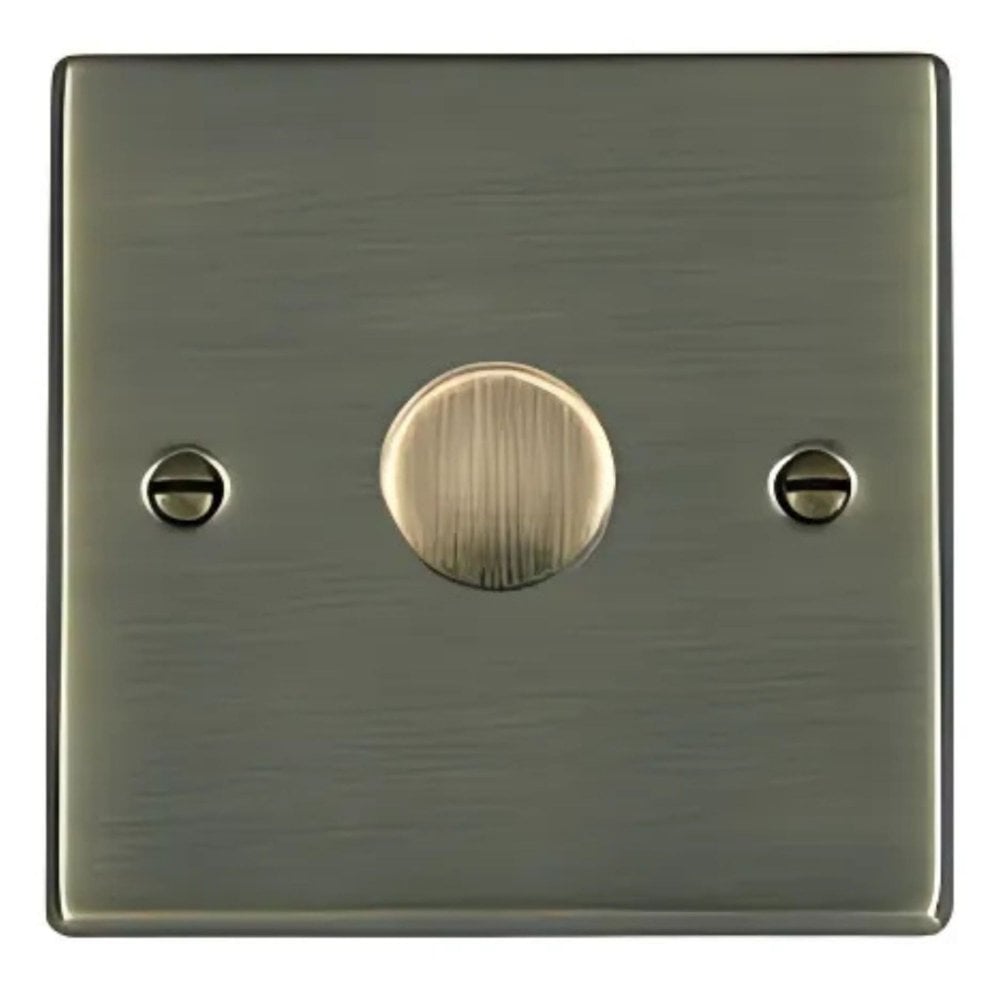

The Hamilton Leading Edge Push On/Off Rotary Singlle 2 Way Dimmer in antique brass offers smooth and reliable lighting control with a refined push-on/push-off operation. Designed for resistive loads, this high-quality dimmer switch is part of the elegant Hamilton sockets and switches collection, combining a slim 5mm profile with visible fixings for a stylish, classic finish. The antique brass plate with matching insert complements both traditional and modern interiors, making it ideal for living rooms, dining rooms, and other ambient spaces. Built in Britain to the highest standards, the Hartland dimmer switch is easy to install, durable, and available without extended lead times.

Features of the Hamilton Single 2 Way Leading Edge Push On/Off Resistive Dimmer, Antique Brass

  • Insert Type: 1 gang 100W Resistive Leading Edge Push On/Off Rotary 2 Way Switching Dimmer
  • Insert Colour: Antique Brass
  • EAN13 Barcode: 5017503299416
  • Commodity Code: 85365015
  • Luckins TSI: 386903656
  • Dimensions (Nominal) Single: Height = 88.0mm, Width = 88.0mm, Depth = 5.0mm
  • Weight: 139 GR
  • Switched Poles: Single
  • Current Rating: 1.66 Amp
  • Voltage: 230V AC
  • Maximum Load: 400W resistive Max Load
  • Mains Frequency: 50Hz
  • IP Rating: IP2XD
  • Contact Gap Minimum: N/A
  • Terminal Capacity 1: 2x1mm²
  • Terminal Capacity 2: 2x1.5mm²
  • Earth Terminal Capacity 1: 5x1mm²
  • Earth Terminal Capacity 2: 4x1.5mm²
  • Earth Terminal Capacity 3: 3x2.5mm²
  • Earth Terminal Capacity 4: 1x4mm² Multi-strand
  • Earth Terminal Capacity 5: 1x6mm²
  • Product Class 1: Face plate must be earthed
  • Ambient Operating Temperature: -5° to +40°C
  • Recommended Location: Internal Use Only
  • Maximum Installation Altitude: 2000m
  • Standard/Approval: BS EN 60669-2-1
