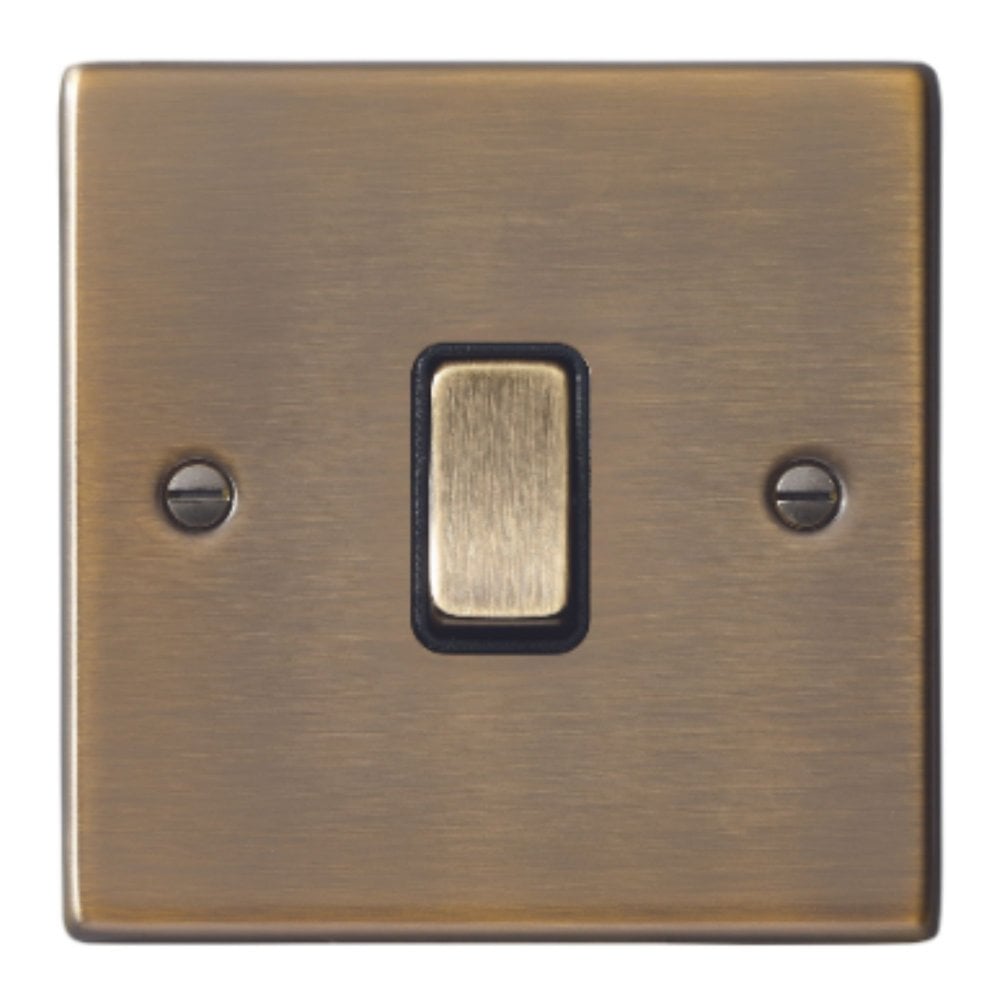

Hamilton Sockets & Switches Hamilton Intermediate Switch, Antique Brass

The Hamilton intermediate light switch is a 1 gang, 10A switch finished in antique brass with a black insert, designed specifically for use in lighting circuits where three or more switches are required to control the same light. Featuring a minimalist 5mm low profile plate and push-fit design,a modern look, it blends effortlessly into high-end interiors. This intermediate switch is part of the premium Hartland  range, the UK's trusted choice for high-quality sockets and switches. Manufactured in Britain with short lead times and excellent stock availability, it's an ideal addition to coordinated electrical layouts where continuity of style and performance is essential. Suitable for use in residential and commercial environments, this Hartland intermediate switch delivers both function and finish to match the wider range of Hartland sockets and Hartland switches.

Features of the Hamilton Intermediate Switch Antique Brass

• Product Type: Intermediate Light Switch
• Fixing Type: Box Fix
• Material: Metal
• Finish: Antique Brass
• Insert Type: 1 gang 10A Intermediate Rocker
• Insert Colour: Black
• Commodity Code: 85363010
• Luckins TSI: 407519301
• Height: 88mm
• Width: 88mm
• Plate Depth: 5mm
• Weight: 95g
• Back Box Depth: Minimum 25mm
• Switched Poles: Single
• Current Rating: 10A
• Voltage: 230V
• Maximum Load: 10A Inductive
• Mains Frequency: 50Hz
• IP Rating: IP2XD
• Contact Gap Minimum: 3mm
• Terminal Capacity 1: 5x1mm²
• Terminal Capacity 2: 4x1.5mm²
• Terminal Capacity 3: 1x2.5mm²
• Terminal Capacity 4: 1x4mm² Multi-strand
• Terminal Capacity 5: 1x6mm²
• Earth Terminal Capacity 1: 5x1mm²
• Earth Terminal Capacity 2: 4x1.5mm²
• Earth Terminal Capacity 3: 3x2.5mm²
• Earth Terminal Capacity 4: 1x4mm² Multi-strand
• Earth Terminal Capacity 5: 1x6mm²
• Product Class 1: Must be earthed
• Ambient Operating Temperature: -5° to +40°C
• Recommended Location: Internal Use Only
• Maximum Installation Altitude: 2000m
• Standard/Approval: BS EN 60669-1
• Warranty: 25 Years
