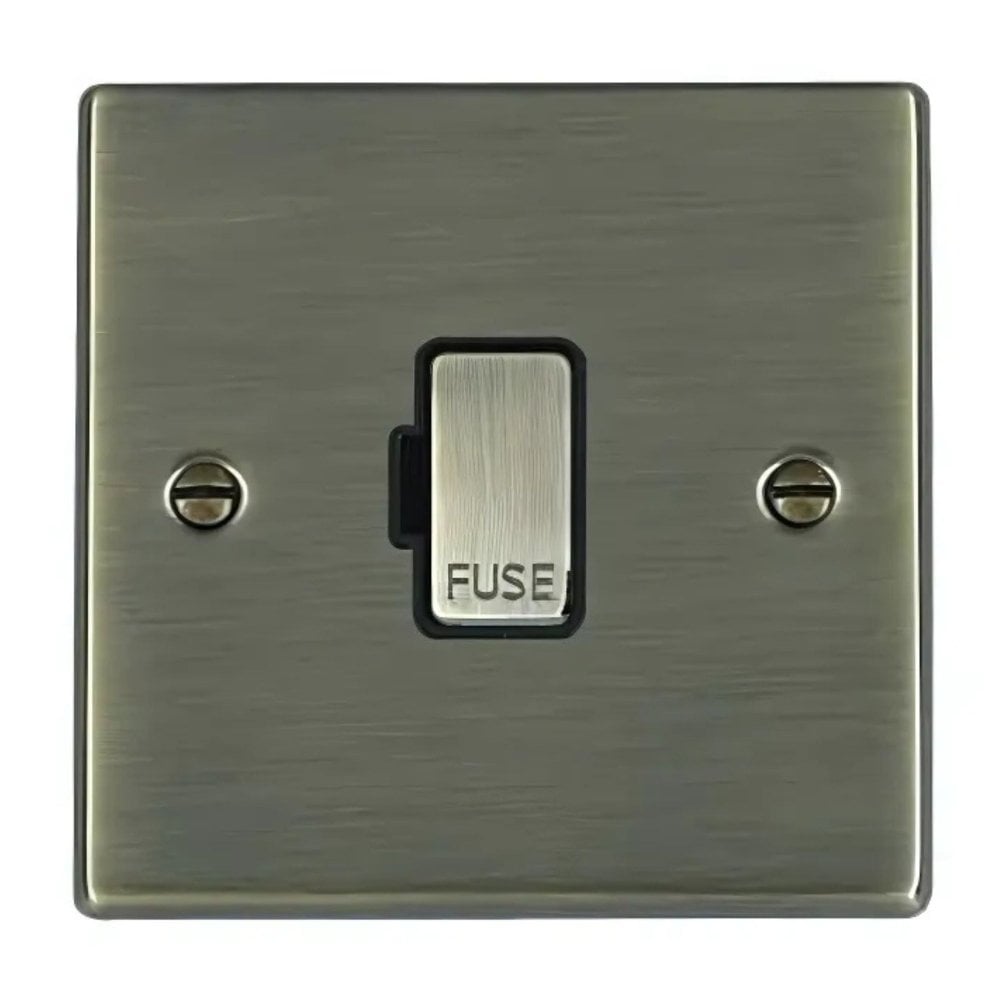

Hamilton Sockets & Switches Hamilton Fused 1 Gang Fuse Only Switch, Antique Brass

The Hamilton Fused Switch in Antique Brass is a 1 Gang 13A Fuse Only unit offering a refined and practical solution for modern interiors, combining durability with timeless style. Part of the popular Hamilton sockets and switches collection, this fused connection unit features a slim front plate in an elegant antique brass finish with visible fixings, designed to blend seamlessly with both traditional and contemporary décor. Ideal for providing fused protection to appliances, the Hamilton range is renowned for its quality craftsmanship, stylish slim profile, and matching switch inserts. Perfect for upgrading your electrical accessories while maintaining a coordinated look across your space.

Features of the Hamilton Fused 1 Gang Fuse Only Switch, Antique Brass

• Insert Type: 1 gang 13A Fuse Only
• Insert Colour: Antique Brass/Black
• Plate Finish: Antique Brass
• EAN13 Barcode: 5017503292950
• Commodity Code: 85363010
• Luckins TSI: 386903627
• ETIM Class: EC000036
• Dimensions (Nominal) Single: Height = 88.0mm, Width = 88.0mm, Depth = 5.0mm
• Weight: 120 GR
• Fixing Hole Centres: Box Fixing = 60.3mm, Grid Fixing = N/A
• Minimum Wall Box Depth: 35mm
• Switched Poles: None
• Current Rating: 13 Amp
• Voltage: 220/250V AC
• Maximum Load: 13 Amp
• Mains Frequency: 50Hz
• IP Rating: IP2XD
• Contact Gap Minimum: None
• Terminal Capacity 1: 5 x 1mm²
• Terminal Capacity 2: 4 x 1.5mm²
• Terminal Capacity 3: 3 x 2.5mm²
• Terminal Capacity 4: 1 x 4mm² Multi-strand
• Terminal Capacity 5: 1 x 6mm²
• Earth Terminal Capacity 1: 6 x 1mm²
• Earth Terminal Capacity 2: 5 x 1.5mm²
• Earth Terminal Capacity 3: 3 x 2.5mm²
• Earth Terminal Capacity 4: 2 x 4mm² Multi-strand
• Earth Terminal Capacity 5: 1 x 6mm²
• Product Class: 1 – Must be earthed
• Ambient Operating Temperature: -5° to +40°C
• Recommended Location: Internal Use Only
