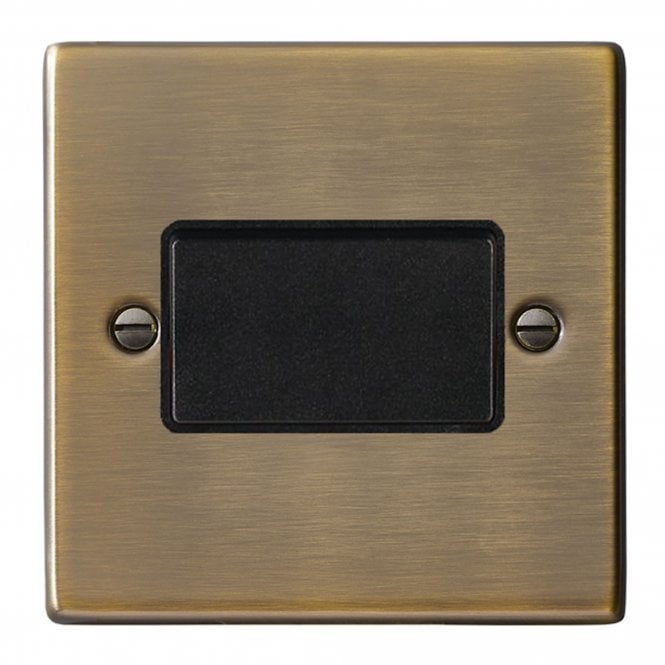

Hamilton Sockets & Switches Hamilton Fan Isolator Switch, Antique Brass

The Hamilton Fan Isolator Switch in Antique Brass is a premium 10A triple pole switch designed for the safe isolation of extractor fans during cleaning or maintenance. Part of the distinguished Hamilton sockets and switches collection, this British-designed and manufactured accessory offers exceptional quality, safety, and style. The elegant antique brass finish with black insert complements both traditional and modern interiors, while the slim 5mm profile provides a refined, discreet appearance. Ideal for residential and commercial applications, this Hartland fan isolator switch ensures long-lasting performance, easy installation, and is available without extended lead times.

Features of the Hamilton Fan Isolator Switch, Antique Brass

• Model Number: 79TPBL-AB-B
• Material: Metal
• Plate Finish: Antique Brass
• Insert Type: 1 gang 10A Triple Pole Rocker
• Insert Colour: Black/Black
• Commodity Code: 85363010
• Luckins TSI: 385552422
• Dimensions (Nominal) Single: Height = 88mm, Width = 88mm, Depth = 5mm
• Weight: 108g
• Minimum Wall Box Depth: 25mm
• Switched Poles: Triple
• Current Rating: 10A
• Voltage: 230V
• Maximum Load: 10A resistive
• Mains Frequency: 50Hz
• IP Rating: IP2XD
• Contact Gap Minimum: 3mm
• Terminal Capacity 1: 5x1mm²
• Terminal Capacity 2: 4x1.5mm²
• Terminal Capacity 3: 1x2.5mm²
• Terminal Capacity 4: 1x4mm² Multi-strand
• Terminal Capacity 5: 1x6mm²
• Earth Terminal Capacity 1: 5x1mm²
• Earth Terminal Capacity 2: 4x1.5mm²
• Earth Terminal Capacity 3: 3x2.5mm²
• Earth Terminal Capacity 4: 1x4mm² Multi-strand
• Earth Terminal Capacity 5: 1x6mm²
• Product Class: 1 Must be earthed
• Ambient Operating Temperature: -5° to +40°C
• Recommended Location: Internal Use Only
• Maximum Installation Altitude: 2000m
• Standard/Approval: BS EN 60669-1
• Warranty: 1 Year
