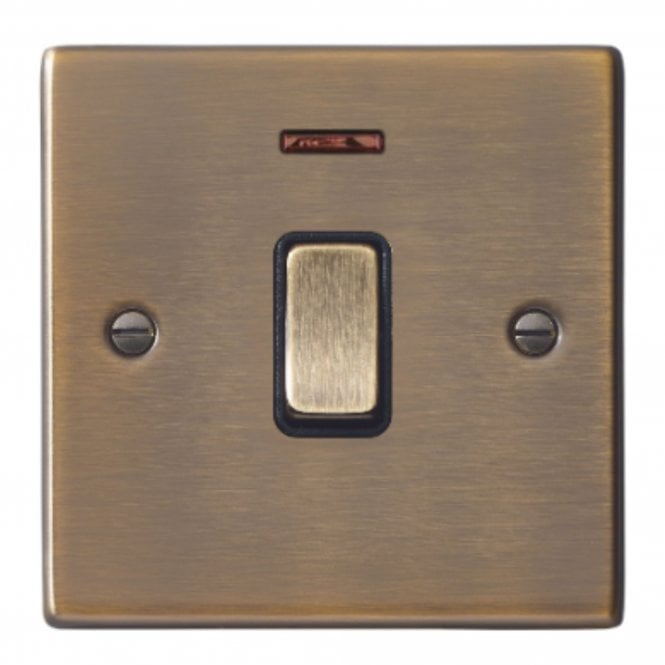

Hamilton Sockets & Switches Hamilton Double Pole Rocker Switch, Antique Brass

The Hamilton Double Pole Rocker Switch in Antique Brass is a high-quality 20AX switch with neon indicator, designed for safe and reliable control of appliances and fixed electrical equipment. Part of the stylish and practical Hamilton sockets and switches collection, this British-made accessory combines a slim 5mm front plate with visible fixings, offering a refined look that complements both traditional and modern interiors. The antique brass finish with matching black insert ensures a coordinated style throughout your space, while robust engineering delivers long-lasting performance. Ideal for kitchens, utility rooms, and commercial settings, this Hartland double pole rocker switch is easy to install, safe to use, and available without extended lead times.

Features of the Hamilton Double Pole Rocker Switch, Antique Brass

• Insert Type: 1 gang 20AX Double Pole Rocker + Neon
• Insert Colour: Antique Brass/Black
• Plate Finish: Antique Brass
• EAN13 Barcode: 5017503292943
• Commodity Code: 85365080
• Luckins TSI: 386903614
• ETIM Class: EC001590
• Dimensions (Nominal) Single: Height = 88.0mm, Width = 88.0mm, Depth = 5.0mm
• Weight: 120 GR
• Fixing Hole Centres: Box Fixing = 60.3mm, Grid Fixing = N/A
• Minimum Wall Box Depth: 35mm
• Switched Poles: Double
• Current Rating: 20AX
• Voltage: 220/250V AC
• Maximum Load: 20 Amp inductive
• Mains Frequency: 50Hz
• IP Rating: IP2XD
• Contact Gap Minimum: 3mm
• Terminal Capacity 1: 3x2.5mm²
• Terminal Capacity 2: 2x4mm² Multi-strand
• Terminal Capacity 3: 1x6mm²
• Earth Terminal Capacity 1: 6x1mm²
• Earth Terminal Capacity 2: 5x1.5mm²
• Earth Terminal Capacity 3: 3x2.5mm²
• Earth Terminal Capacity 4: 2x4mm² Multi-strand
• Earth Terminal Capacity 5: 1x6mm²
• Product Class: 1 Must be earthed
• Ambient Operating Temperature: -5° to +40°C
• Recommended Location: Internal Use Only
• Maximum Installation Altitude: 2000m
