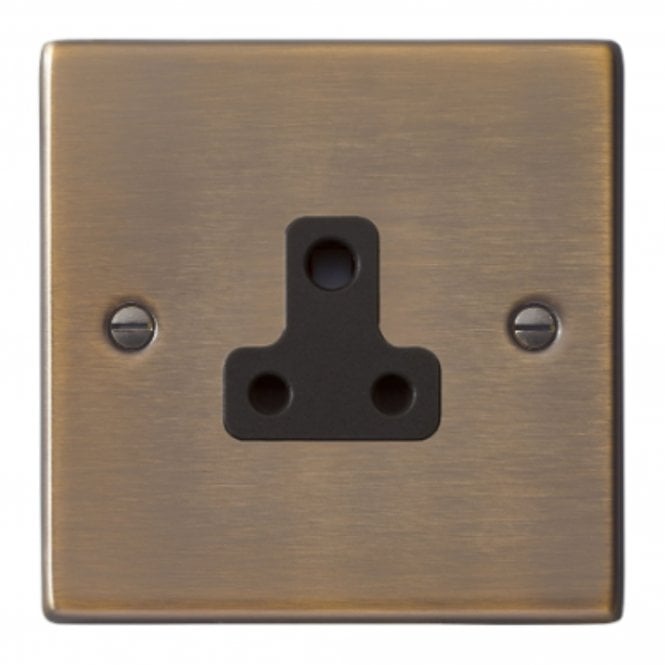

Hamilton Sockets & Switches Hamilton 5A Plug Socket, Antique Brass

The Hamilton 5A 1 gang unswitched socket in antique brass with a black insert is a premium solution for dedicated lighting circuits, ideal for use where only 5 amp connections are required. Designed with a low profile 5mm plate depth and a polished chrome finish, this compact and stylish socket enhances the appearance of any interior while maintaining functionality. It includes built-in 3-pin operated safety shutters to protect against accidental electric shock, making it suitable for homes and commercial environments alike. As part of the British-made Hamilton range, known for its high-quality sockets and switches, this 5A socket offers outstanding reliability with no extended lead times, making it a smart and safe choice for lighting installations. Ideal for electricians, interior designers and property developers seeking coordinated Hartland switches and sockets across their projects.

Features of the Hamilton 13A Double Socket 2 Gang Antique Brass

• Product Type: Unswitched Socket
• Fixing Type: Box Fix
• Material: Metal
• Finish: Polished Chrome
• Insert Type: 1 gang 5A Unswitched Socket
• Insert Colour: Black
• Commodity Code: 85363010
• Luckins TSI: 385552545
• Height: 88mm
• Width: 88mm
• Plate Depth: 5mm
• Weight: 96g
• Back Box Depth: Minimum 35mm
• Switched Poles: None
• Current Rating: 5A
• Voltage: 230V
• Maximum Load: 5A
• Mains Frequency: 50Hz
• IP Rating: IP2XD
• Contact Gap Minimum: None
• Terminal Capacity 1: 5x1mm²
• Terminal Capacity 2: 4x1.5mm²
• Terminal Capacity 3: 2x2.5mm²
• Terminal Capacity 4: 1x4mm²
• Earth Terminal Capacity 1: 5x1mm²
• Earth Terminal Capacity 2: 4x1.5mm²
• Earth Terminal Capacity 3: 2x2.5mm²
• Earth Terminal Capacity 4: 1x4mm²
• Product Class 1: Must be earthed
• Ambient Operating Temperature: -5° to +40°C
• Recommended Location: Internal Use Only
• Maximum Installation Altitude: 2000m
• Standard/Approval: BS 546
• Additional Information: Shuttered: Yes
• Warranty: 1 Year
