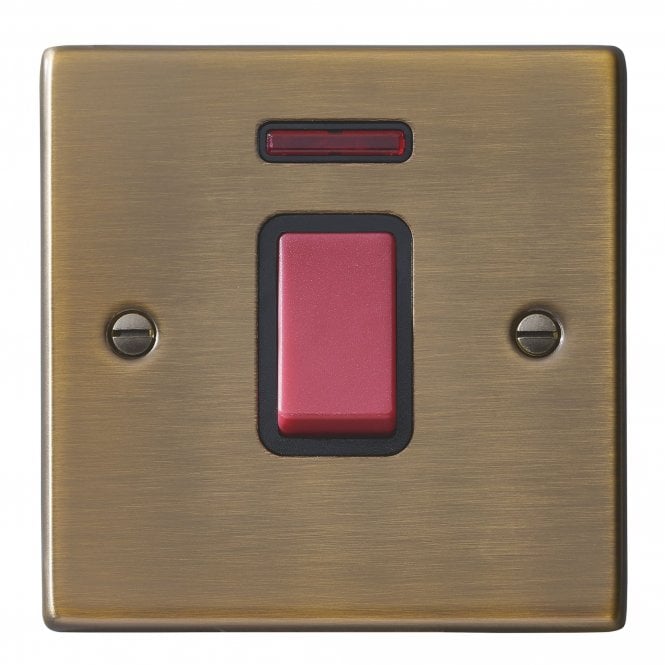

Hamilton Sockets & Switches Hamilton 45A Cooker Switch 1 Gang Neon, Antique Brass

The Hamilton Double Pole Rocker Switch with Neon in antique brass is a high-capacity cooker switch designed for safely isolating kitchen appliances such as ovens and hobs. Part of the premium Hamilton sockets and switches collection, this British-made unit features a neon indicator for clear on/off status, a slim 5mm low-profile plate, and a sleek satin steel finish with black insert. Combining durability, safety, and style, the Hartland double pole cooker switch is perfect for modern and traditional interiors alike, offering quick installation and reliable performance without extended lead times.

Features of the Hamilton 45A Double Pole Rocker and Neon, Antique Brass

• Insert Type: 1 gang 45A Double Pole Red Rocker + Neon
• Insert Colour: Red/Black
• EAN13 Barcode: 5017503245710
• Commodity Code: 85363030
• Luckins TSI: 385552574
• Dimensions (Nominal) Single: Height = 88.0mm, Width = 88.0mm, Depth = 5.0mm
• Weight: 154 GR
• Switched Poles: Double
• Current Rating: 45 Amp
• Voltage: 220/250V AC
• Maximum Load: 45 Amp
• Mains Frequency: 50Hz
• IP Rating: IP2XD
• Contact Gap Minimum: 3mm
• Terminal Capacity 1: 3x6mm²
• Terminal Capacity 2: 2x10mm²
• Terminal Capacity 3: 1x16mm²
• Earth Terminal Capacity 1: 3x6mm²
• Earth Terminal Capacity 2: 2x10mm²
• Earth Terminal Capacity 3: 1x16mm²
• Product Class 1: Must be earthed
• Ambient Operating Temperature: -5° to +40°C
• Recommended Location: Internal Use Only
• Maximum Installation Altitude: 2000m
• Standard/Approval: BS EN 60669-1

View all from Hamilton
