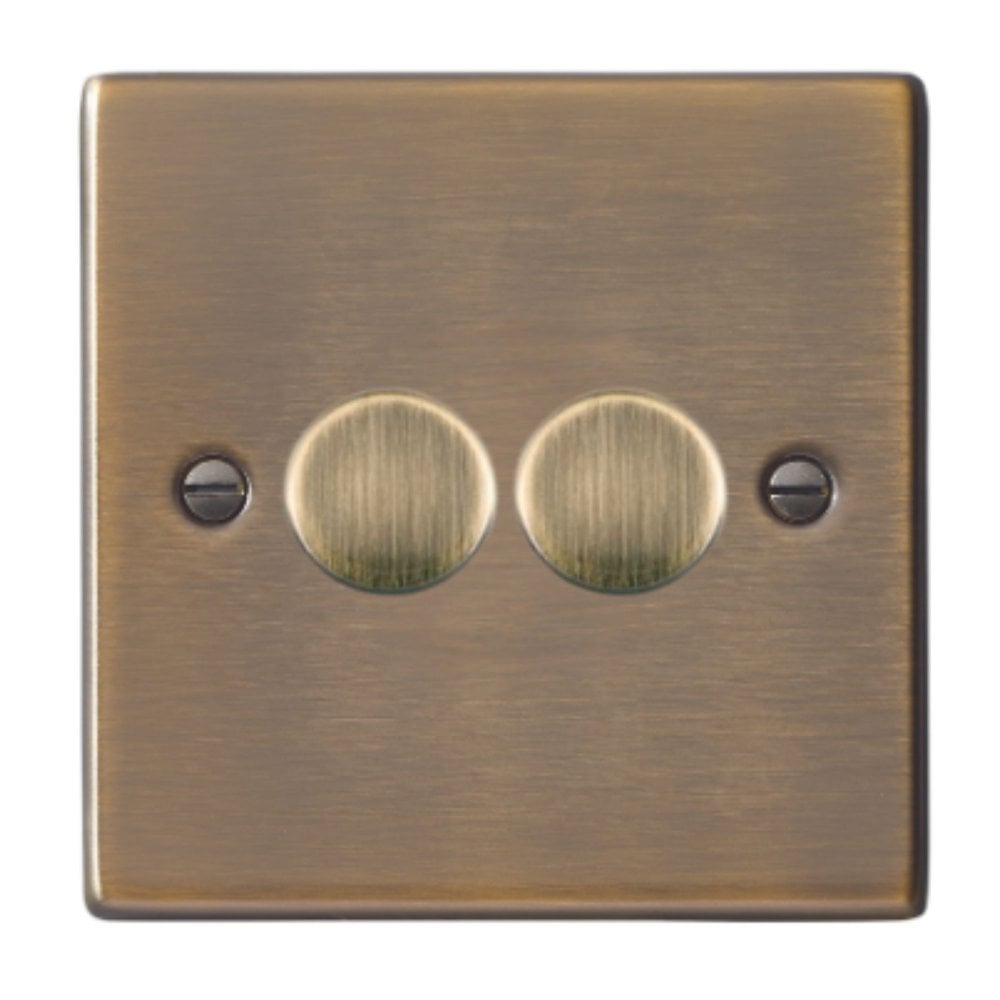

Hamilton Sockets & Switches Hamilton 2Gang Way Leading Edge Push On/Off Resistive Dimmer, Antique Brass, 100W

The Hamilton 2 Gang 2 Way Leading Edge Push On/Off Resistive Dimmer in antique brass offers precise and smooth lighting control across two circuits, each with a 300W resistive load capacity. Part of the stylish Hamilton sockets and switches range, this British-made dimmer features a slim 5mm front plate with visible fixings, combining timeless antique brass elegance with reliable performance. Designed for  LED lighting, it is ideal for living rooms, dining rooms, and other ambient spaces. Built to last and easy to install, the Hartland 2 gang dimmer switch is available without extended lead times.

Features of the Hamilton 2 Gang Way Leading Edge Push On/Off Resistive Dimmer, Antique Brass

• Insert Colour: Antique Brass
• EAN13 Barcode: 5017503299423
• Commodity Code: 85365015
• Luckins TSI: 386903698
• Dimensions (Nominal) Single: Height = 88.0mm, Width = 88.0mm, Depth = 5.0mm
• Weight: 194 GR
• Switched Poles: Single
• Current Rating: 1.25 Amps per gang
• Voltage: 230V AC
• Maximum Load: 100W resistive per gang
• Mains Frequency: 50Hz
• IP Rating: IP2XD
• Contact Gap Minimum: N/A
• Terminal Capacity 1: 2x1mm²
• Terminal Capacity 2: 2x1.5mm²
• Earth Terminal Capacity 1: 5x1mm²
• Earth Terminal Capacity 2: 4x1.5mm²
• Earth Terminal Capacity 3: 3x2.5mm²
• Earth Terminal Capacity 4: 1x4mm² Multi-strand
• Earth Terminal Capacity 5: 1x6mm²
• Product Class 1: Face plate must be earthed
• Ambient Operating Temperature: -5° to +40°C
• Recommended Location: Internal Use Only
• Maximum Installation Altitude: 2000m
• Standard/Approval: BS EN 60669-2-1
