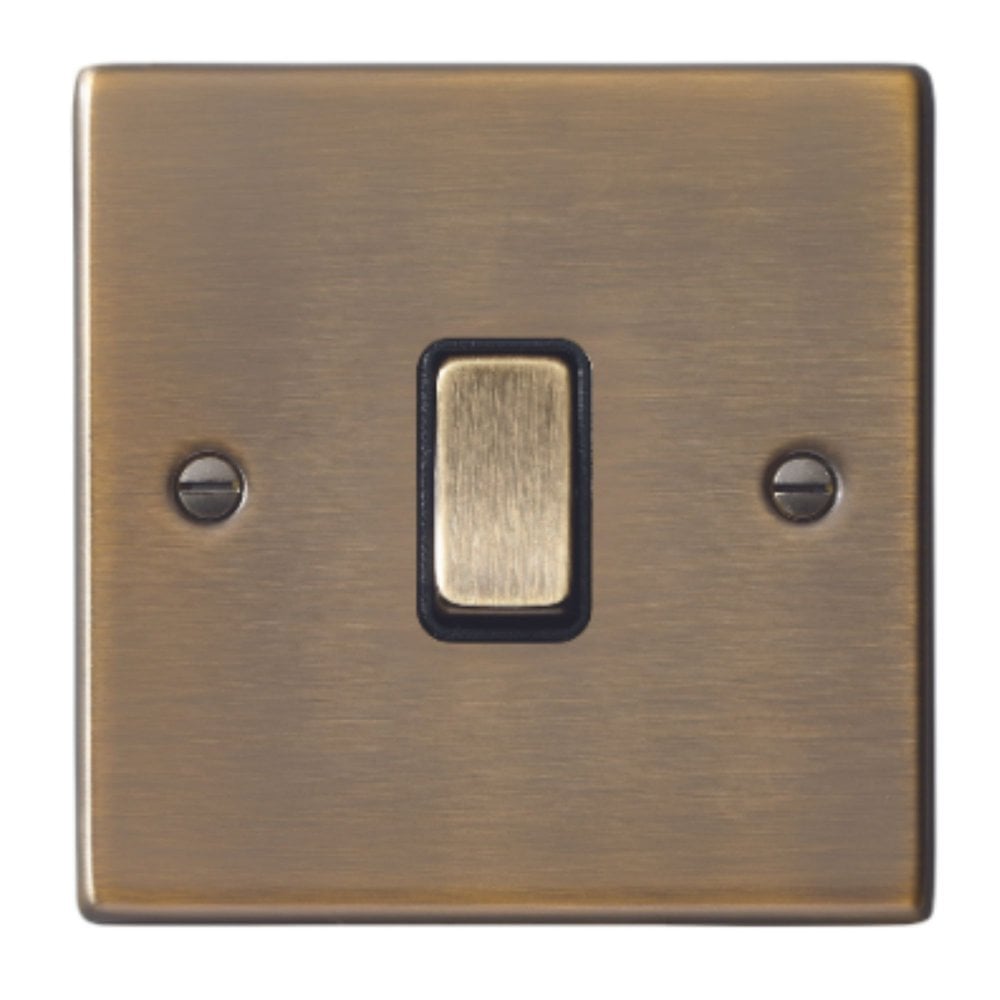

Hamilton Sockets & Switches Hamilton 1G 2Way Rocker Switch, Antique Brass

The Hamilton 1 Gang 10AX 2 Way Rocker Switch in antique brass, combines elegant design with reliable functionality, making it an ideal choice for both contemporary and classic interiors. Part of the premium Hamilton sockets and switches collection, it features a slim antique brass front plate with visible fixings, delivering a refined yet practical finish that complements a wide range of décors. Designed for controlling multiple lighting circuits from two locations, this high-quality rocker switch offers smooth operation, durable construction, and a timeless style that enhances any room while maintaining the coordinated elegance of the Hartland range.

Features of the Hamilton Single 2 Way Rocker Switch, Antique Brass

• Insert Type: 1 gang 10amp
• Insert Colour: Antique Brass/Black
• Plate Finish: Antique Brass
• EAN13 Barcode: 5017503292950
• Commodity Code: 85363010
• Luckins TSI: 386903627
• ETIM Class: EC000036
• Dimensions (Nominal) Single: Height = 88.0mm, Width = 88.0mm, Depth = 5.0mm
• Weight: 120 GR
• Fixing Hole Centres: Box Fixing = 60.3mm, Grid Fixing = N/A
• Minimum Wall Box Depth: 35mm
• Switched Poles: None
• Current Rating: 10 Amp
• Voltage: 220/250V AC
• Maximum Load: 10 Amp
• Mains Frequency: 50Hz
• IP Rating: IP2XD
• Contact Gap Minimum: None
• Terminal Capacity 1: 5 x 1mm²
• Terminal Capacity 2: 4 x 1.5mm²
• Terminal Capacity 3: 3 x 2.5mm²
• Terminal Capacity 4: 1 x 4mm² Multi-strand
• Terminal Capacity 5: 1 x 6mm²
• Earth Terminal Capacity 1: 6 x 1mm²
• Earth Terminal Capacity 2: 5 x 1.5mm²
• Earth Terminal Capacity 3: 3 x 2.5mm²
• Earth Terminal Capacity 4: 2 x 4mm² Multi-strand
• Earth Terminal Capacity 5: 1 x 6mm²
• Product Class: 1 – Must be earthed
• Ambient Operating Temperature: -5° to +40°C
• Recommended Location: Internal Use Only
