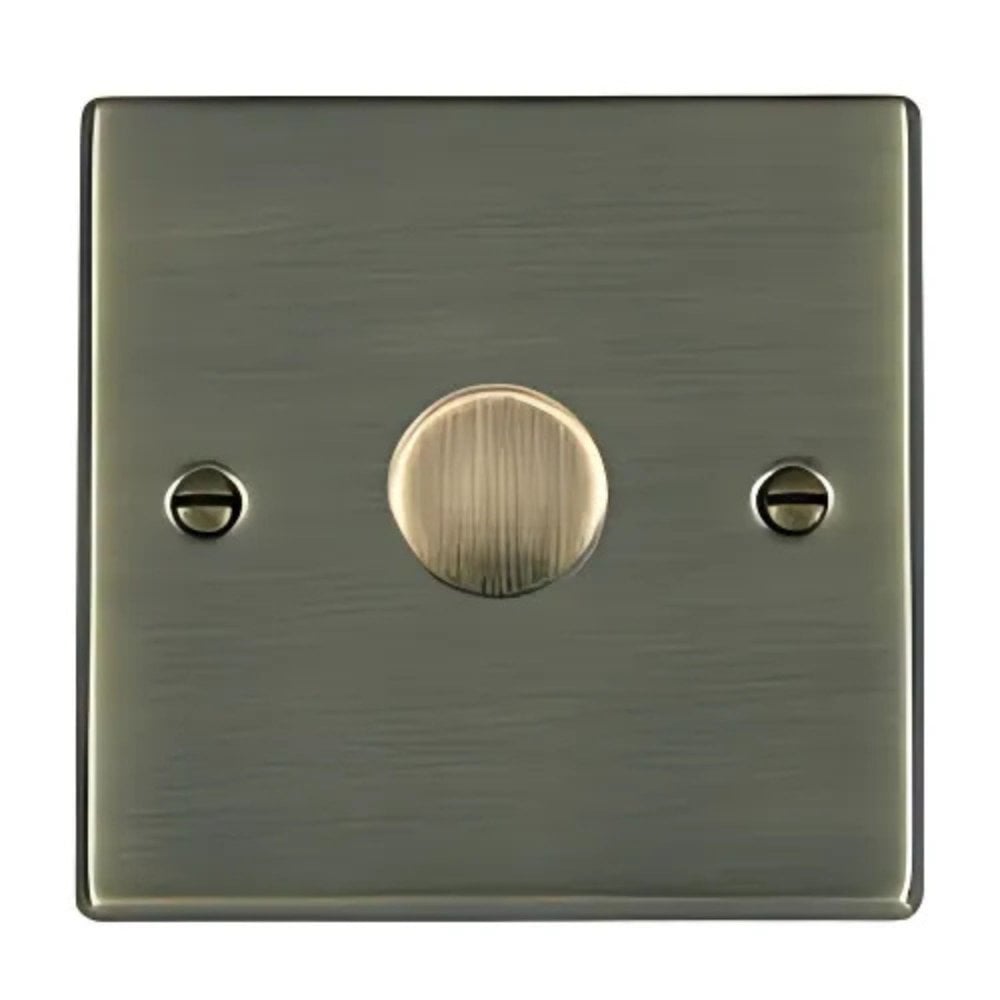

Hamilton Sockets & Switches Hamilton 1 gang 2 Way Leading Edge Push On/Off Resistive Dimmer, Antique Brass

The Hamilton Leading Edge Push On/Off Rotary 2 Way Dimmer in antique brass delivers smooth and reliable lighting control for resistive loads, with a stylish push-on/push-off operation. Part of the premium Hamilton sockets and switches collection, this British-made dimmer features a slim 5mm profile with visible fixings, blending timeless antique brass elegance with robust performance. Ideal for living rooms, dining rooms, and ambient lighting applications, it is compatible with branded tungsten filament GU10 lamps, mains voltage halogen (with 25% de-rating), and LED lighting (with 75% de-rating – compatibility check required). Combining style, quality, and functionality, the Hamilton dimmer switch is built to last and available without extended lead times.

Features of the Hamilton Leading Edge Push On/Off Resistive Dimmer, Antique Brass

• Insert Type: 1 gang 600W Resistive Leading Edge Push On/Off Rotary 2 Way Switching Dimmer
• Insert Colour: Antique Brass
• EAN13 Barcode: 5017503299454
• Commodity Code: 85365015
• Luckins TSI: 386903669
• Dimensions (Nominal) Single: Height = 88.0mm, Width = 88.0mm, Depth = 5.0mm
• Switched Poles: Single
• Current Rating: 2.5 Amp
• Voltage: 220/250V AC
• Maximum Load: 600W resistive Min Load 100W
• Mains Frequency: 50Hz
• IP Rating: IP2XD
• Contact Gap Minimum: N/A
• Terminal Capacity 1: 2x1mm²
• Terminal Capacity 2: 2x1.5mm²
• Earth Terminal Capacity 1: 5x1mm²
• Earth Terminal Capacity 2: 4x1.5mm²
• Earth Terminal Capacity 3: 3x2.5mm²
• Earth Terminal Capacity 4: 1x4mm² Multi-strand
• Earth Terminal Capacity 5: 1x6mm²
• Product Class 1: Face plate must be earthed
• Ambient Operating Temperature: -5° to +40°C
• Recommended Location: Internal Use Only
• Maximum Installation Altitude: 2000m
• Standard/Approval: BS EN 60669-2-1
• Additional Notes: Tungsten filament GU10 lamps must be branded with a fuse base. When using mains voltage halogen lamps, dimmers should be de-rated by 25%. When dimming LED lamps, de-rate by 75% – please contact our Technical team for compatibility.
