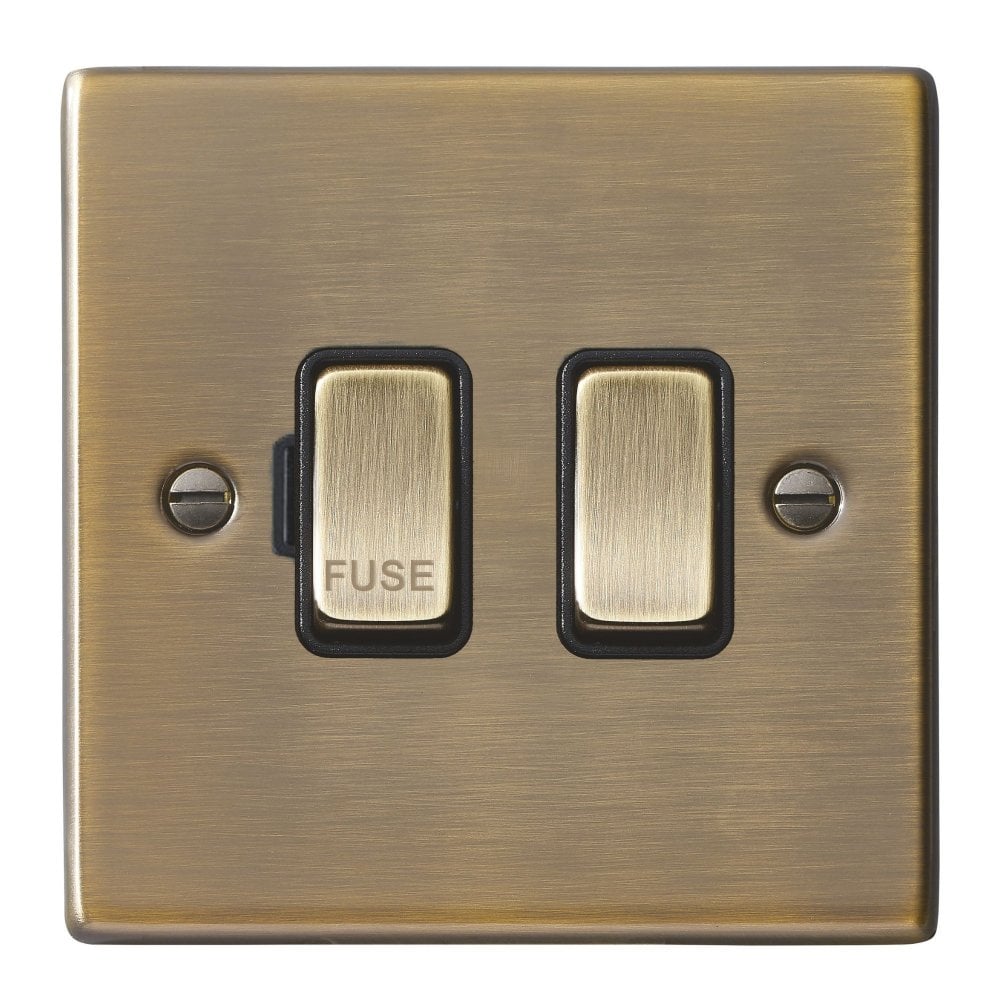

Hamilton Sockets & Switches Hamilton 1 gang 13A Double Pole Fused Spur, Antique Brass

The Hamilton 1 Gang 13A Double Pole Fused Spur in antique brass is a premium-quality fused connection unit designed for safely isolating appliances while providing circuit protection. Part of the renowned Hamilton sockets and switches collection, this British-made accessory combines practical safety features with an elegant antique brass finish and black insert. Its slim 5mm front plate with visible fixings blends timeless style with modern engineering, making it ideal for both traditional and contemporary interiors. Built for long-lasting performance and straightforward installation, this Hartland fused spur is perfect for kitchens, utility rooms, and commercial spaces, and is available without extended lead times.

Features of the Hamilton 1 Gang 13A Double Pole Fused Spur, Antique Brass

• Insert Type: 1 gang 13A Double Pole Fused Spur
• Insert Colour: Antique Brass/Black
• Plate Finish: Antique Brass
• EAN13 Barcode: 5017503292905
• Commodity Code: 85363010
• Luckins TSI: 386903928
• ETIM Class: EC001590
• Dimensions (Nominal) Single: Height = 88.0mm, Width = 88.0mm, Depth = 5.0mm
• Weight: 130 GR
• Fixing Hole Centres: Box Fixing = 60.3mm, Grid Fixing = N/A
• Minimum Wall Box Depth: 35mm
• Switched Poles: Double
• Current Rating: 13 Amp
• Voltage: 220/250V AC
• Maximum Load: 13 Amp
• Mains Frequency: 50Hz
• IP Rating: IP2XD
• Contact Gap Minimum: 3mm
• Terminal Capacity 1: 3x2.5mm²
• Terminal Capacity 2: 2x4mm² Multi-strand
• Terminal Capacity 3: 1x6mm²
• Earth Terminal Capacity 1: 6x1mm²
• Earth Terminal Capacity 2: 5x1.5mm²
• Earth Terminal Capacity 3: 3x2.5mm²
• Earth Terminal Capacity 4: 2x4mm² Multi-strand
• Earth Terminal Capacity 5: 1x6mm²
• Product Class: 1 Must be earthed
• Ambient Operating Temperature: -5° to +40°C
• Recommended Location: Internal Use Only
• Maximum Installation Altitude: 2000m
