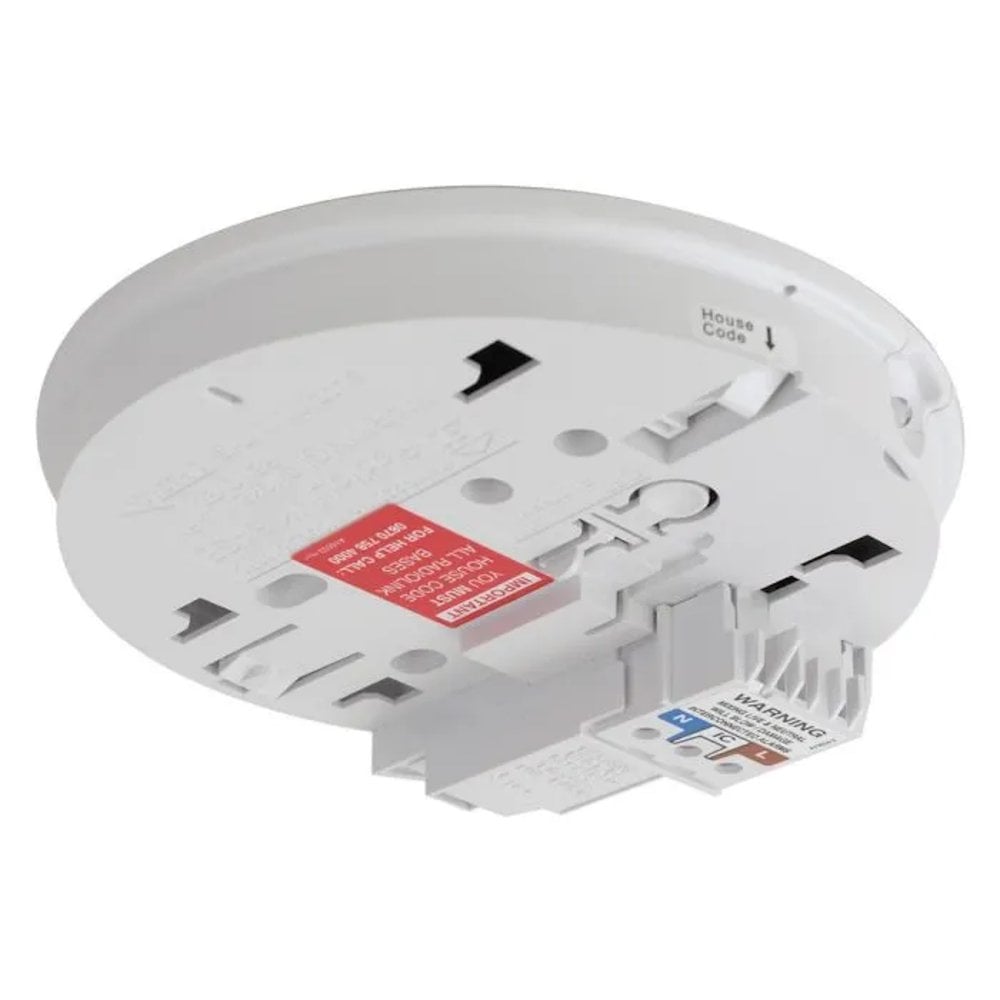

The Ei Ei168RC RadioLINK Base enables wireless interconnection for Ei 140RC Series alarms, allowing all linked alarms to activate together when a fire is detected. This enhances whole property protection by ensuring that if one alarm senses danger, every alarm sounds. Designed with an Easi Fit mounting plate, the RadioLINK Base provides straightforward installation and reduces wiring time, making it ideal for both new builds and retrofit applications.
The Ei168RC is mains powered and includes a rechargeable lithium back up battery to maintain operation during power outages. It features an internal on and off switch that activates the battery only when an alarm head is attached. The integrated house code function prevents interference from neighbouring radio frequency systems, ensuring secure and reliable communication. With robust RF mesh networking, the Ei168RC delivers dependable wireless connectivity across the home.
Features of the Ei Ei168RC RadioLINK Base:
Provides wireless connection between RadioLINK and SmartLINK devices
Multi path, multi repeater RF mesh architecture for strong communication
Ei wireless base for interconnecting alarms
Compatible with 140RC Series alarms including Ei146RC, Ei144RC and Ei141RC
Mains powered with rechargeable lithium battery back up
Supports up to 12 interconnected RadioLINK devices
Simple wiring with Easi Fit mounting plate
Easy installation and setup
Internal switch for controlling power to the alarm head
Indicator LED: blue for RF transmission, house code mode and factory reset
Can be mounted beneath the Easi Fit alarm base or remotely using supplied fittings
Radio frequency: 868.499 MHz
RF range: 100 m in free air, 30 m in a standard property
Voltage: 230V
Wattage: 2.4W
Humidity range: 15 percent to 95 percent relative humidity
Height: 37 mm
Diameter: 150 mm
Material: UL94 VO flame retardant plastic
Warranty: 5 year limited warranty
Standards: CE certified, EN300220-3 (RF), 301498-3 (EMC)
